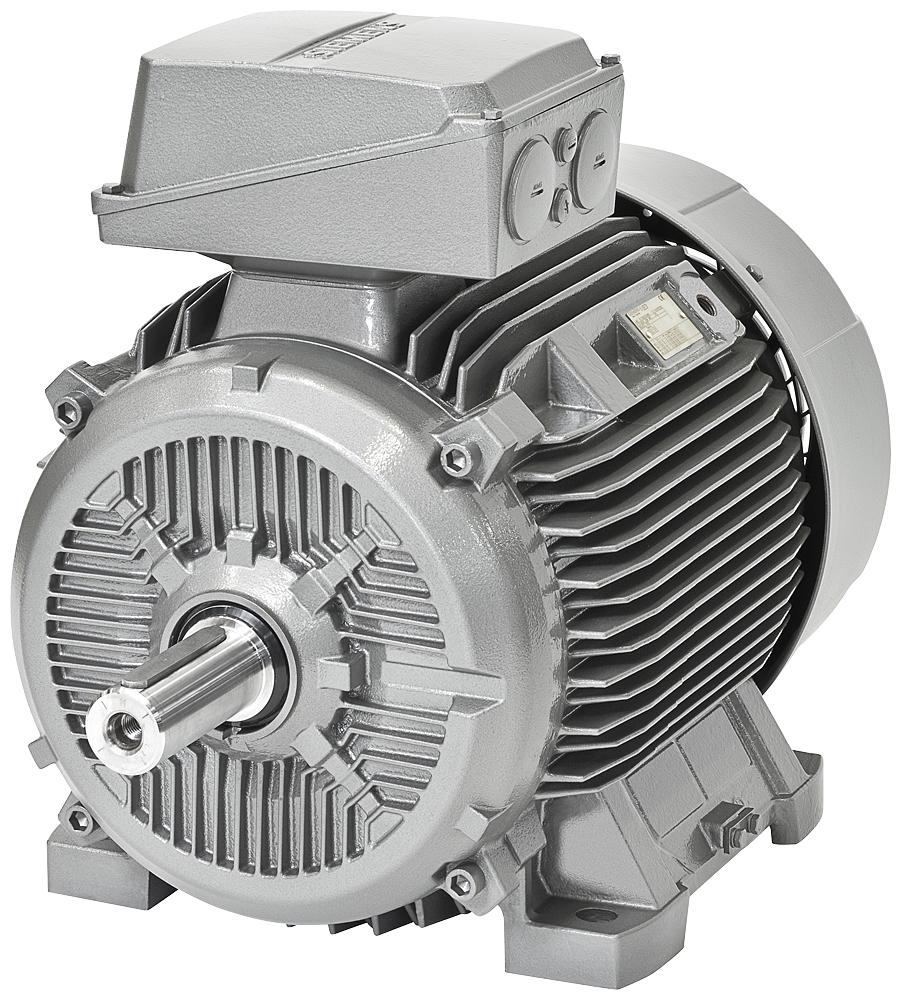

1LE1503-3AA23-4FA4 SIMOTICS SD motor type: 1CV3312A low-voltage motor,

SIMOTICS SD motor type: 1CV3312A low-voltage motor, IEC squirrel-cage rotor, self-cooled, IP55 temperature class 155(F) according to 130(B) gray cast iron housing Basic Line Premium Efficiency IE3, in EEA: minimum efficiency according to (EU) 2019/1781 is IE4 (as of 01.07.2023) 2-pole * size 315M, * 132 kW (50 Hz) 148 kW (60 Hz) standard color RAL 7030 if no order code is specified for selecting another color; this product will show either Siemens or Innomotics as manufacturer.? 3 AC 50 Hz 400 VD/690 VY * 3 AC 60 Hz 460 VD IM B 5, Flange: FF600 (A660) without motor protection Terminal box at top
