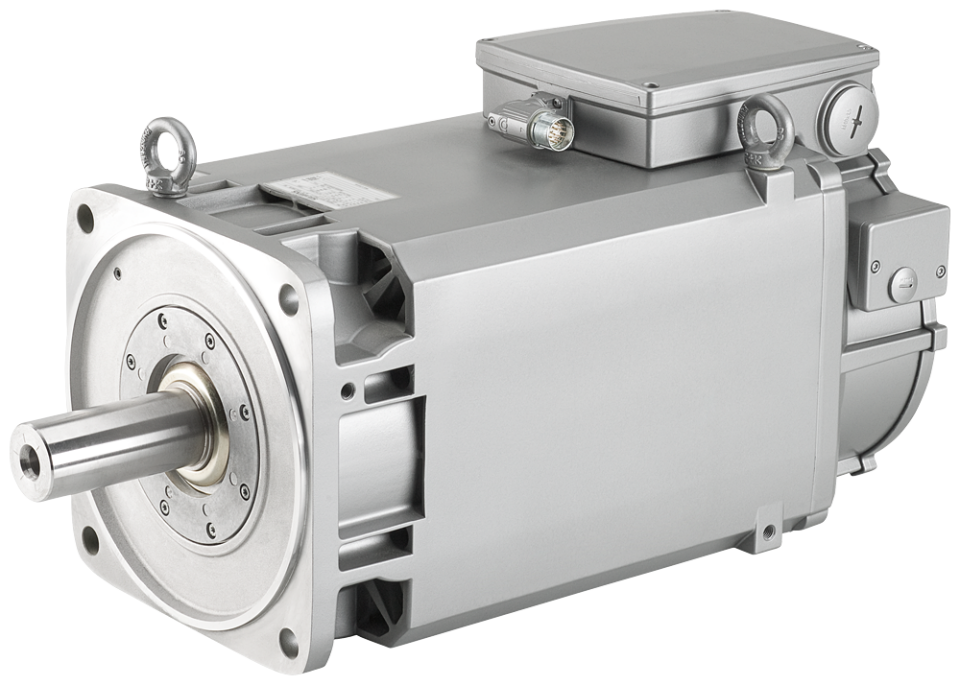

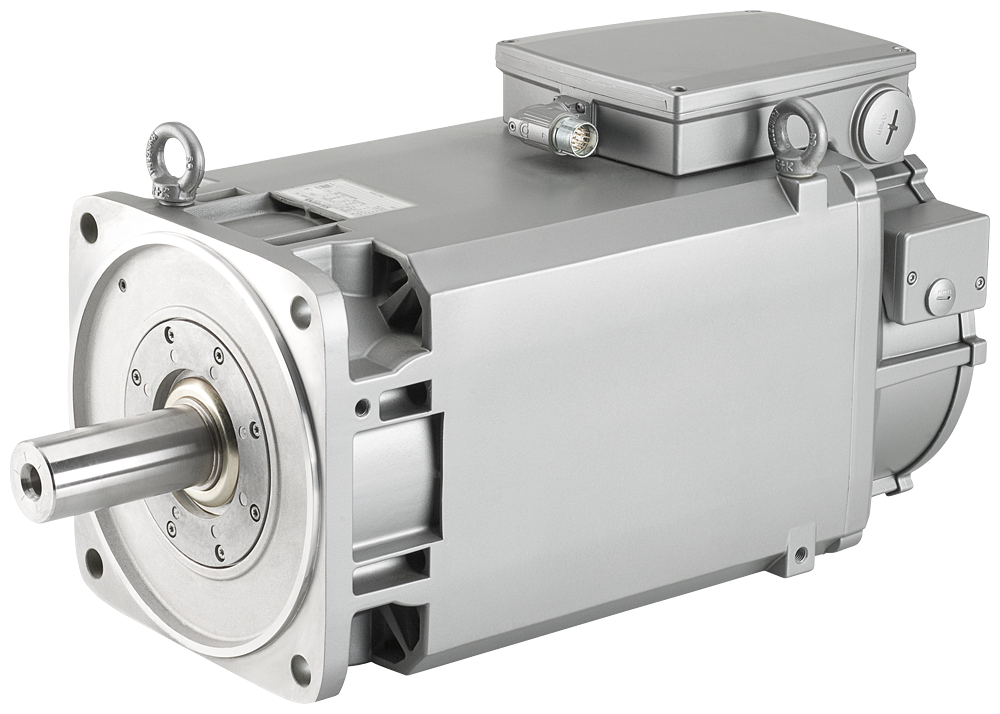

1PH8083-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 2.8

SIMOTICS M compact asynchronous motor 1500 rpm 2.8 kW 17.8 Nm 7.5 A 346 V 1750 rpm 3.3 kW 18 Nm 7.5 A 398 V 2000 rpm 3.7 kW 17.7 Nm 7.6 A 447 V 2200 rpm 4.1 kW 17.8 Nm 7.6 A 480 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
