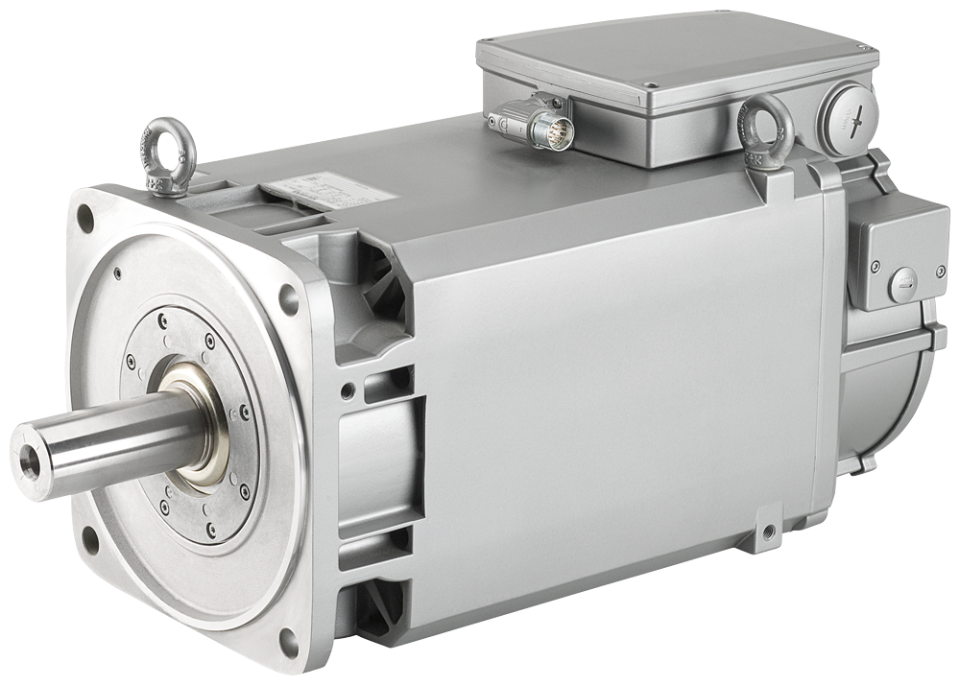

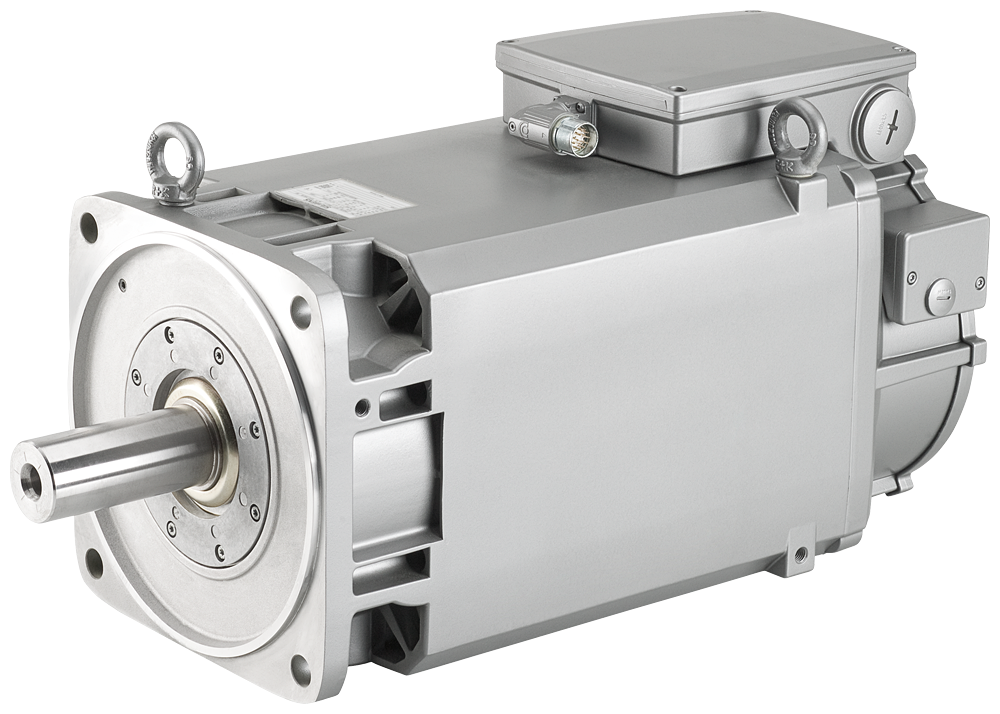

1PH8101-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 3.7

SIMOTICS M compact asynchronous motor 1500 rpm 3.7 kW 24 Nm 12.5 A 265 V 1750 rpm 4.3 kW 23 Nm 12.5 A 304 V 2000 rpm 4.7 kW 22 Nm 12.5 A 343 V 2200 rpm 5.1 kW 22 Nm 12.5 A 363 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
