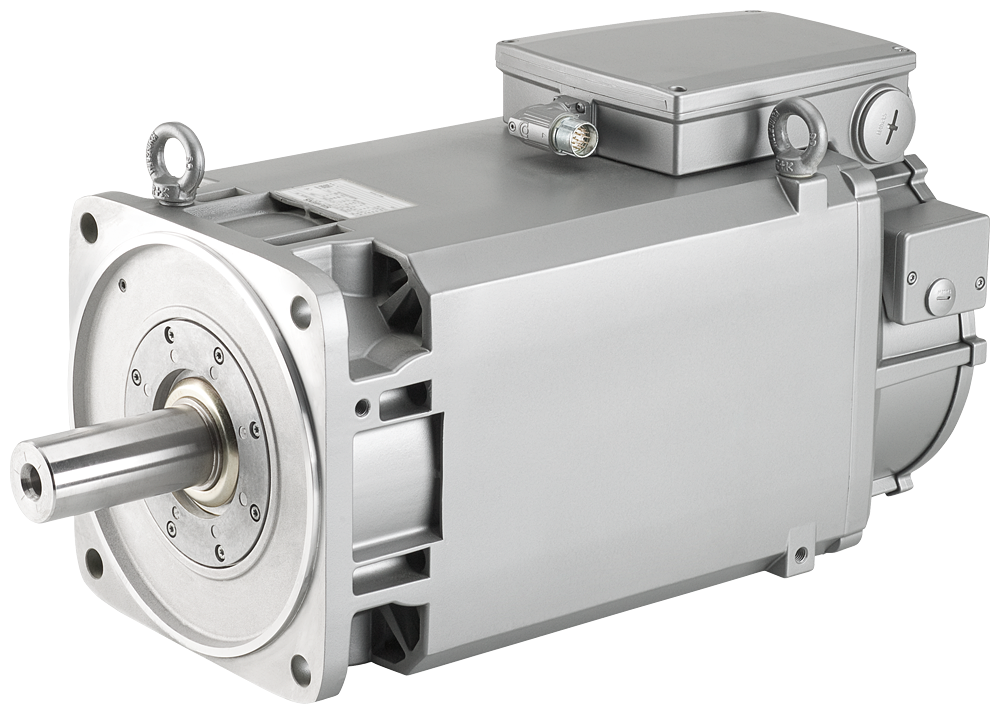

1PH8103-1AD00-2BA2 SIMOTICS M compact asynchronous motor 1000 rpm 3.7

SIMOTICS M compact asynchronous motor 1000 rpm 3.7 kW 35 Nm 10 A 333 V 1150 rpm 4.3 kW 36 Nm 10 A 380 V 1350 rpm 4.7 kW 33 Nm 9.7 A 423 V 1500 rpm 5.2 kW 33 Nm 9.7 A 470 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
