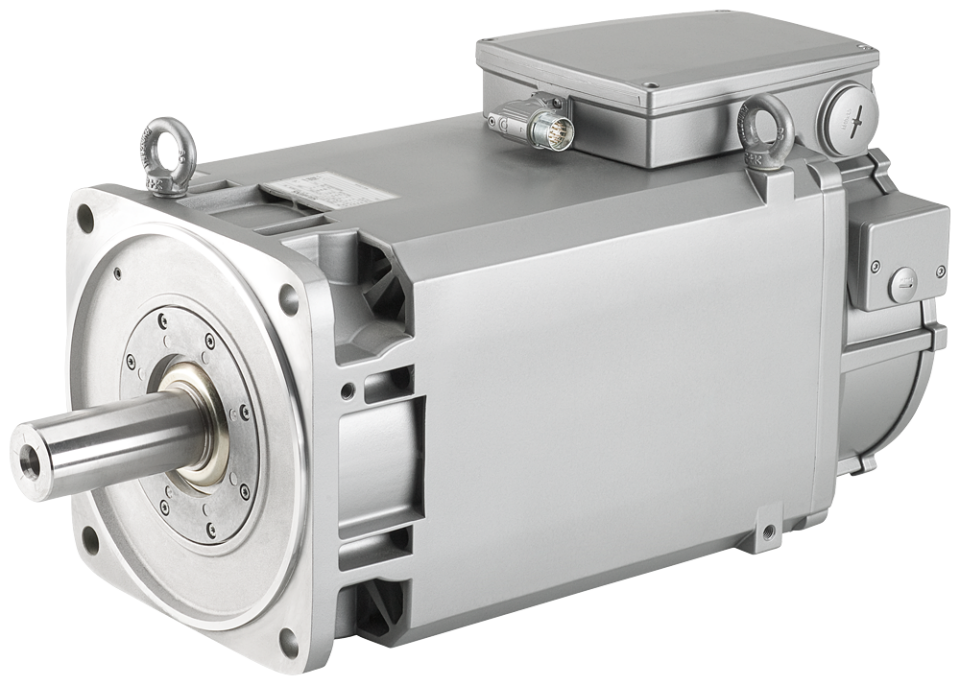

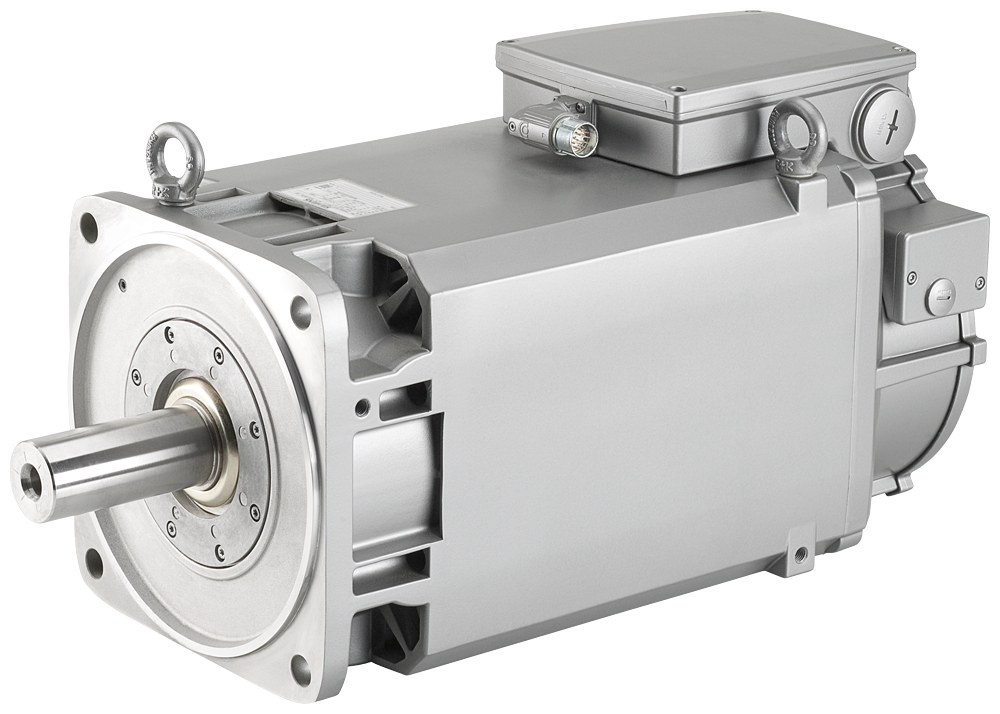

1PH8103-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 5.5

SIMOTICS M compact asynchronous motor 1500 rpm 5.5 kW 35 Nm 13.5 A 368 V 1750 rpm 6.3 kW 34 Nm 13.1 A 412 V 2000 rpm 7 kW 33 Nm 12.7 A 460 V 2200 rpm 7.7 kW 33 Nm 12.7 A 480 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
