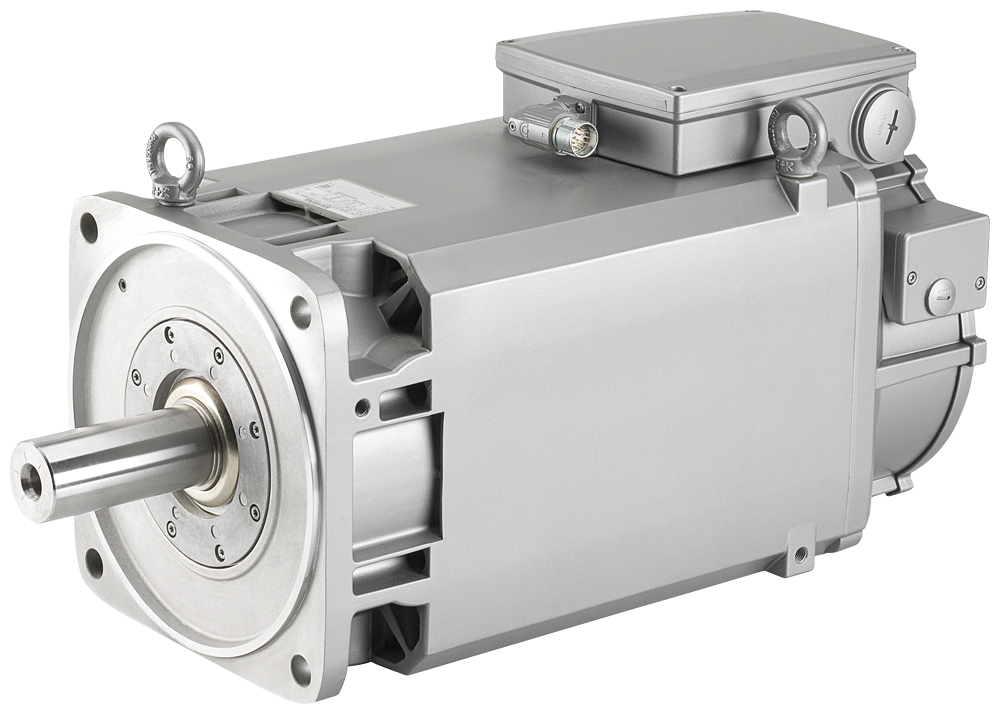

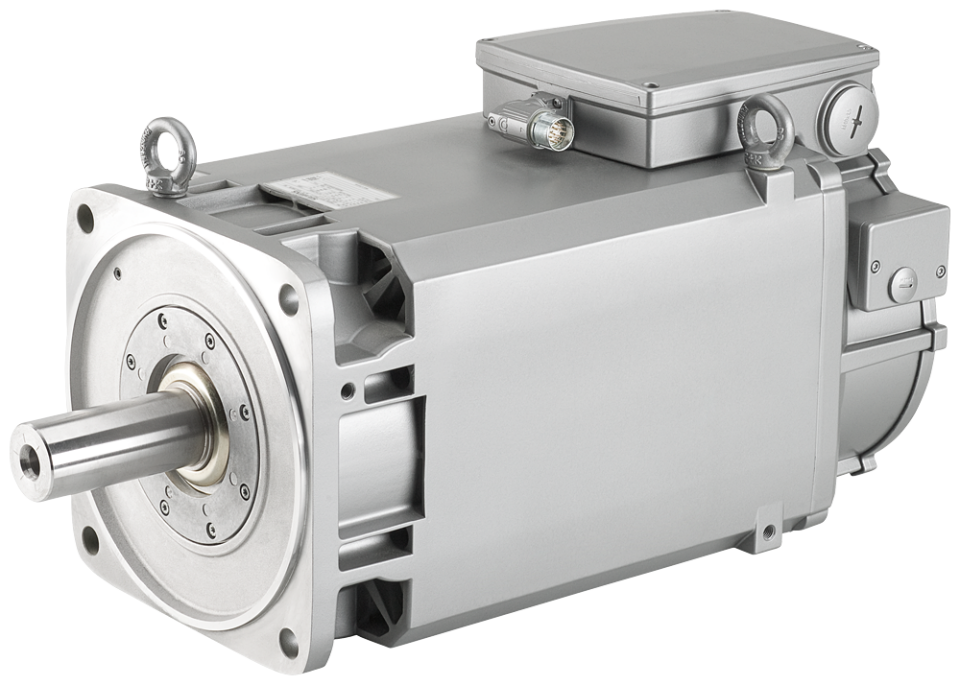

1PH8107-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 9 kW

SIMOTICS M compact asynchronous motor 1500 rpm 9 kW 57 Nm 23.5 A 330 V 1750 rpm 10 kW 55 Nm 22 A 380 V 2000 rpm 11 kW 53 Nm 21.5 A 428 V 2200 rpm 12.1 kW 53 Nm 21.5 A 470 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
