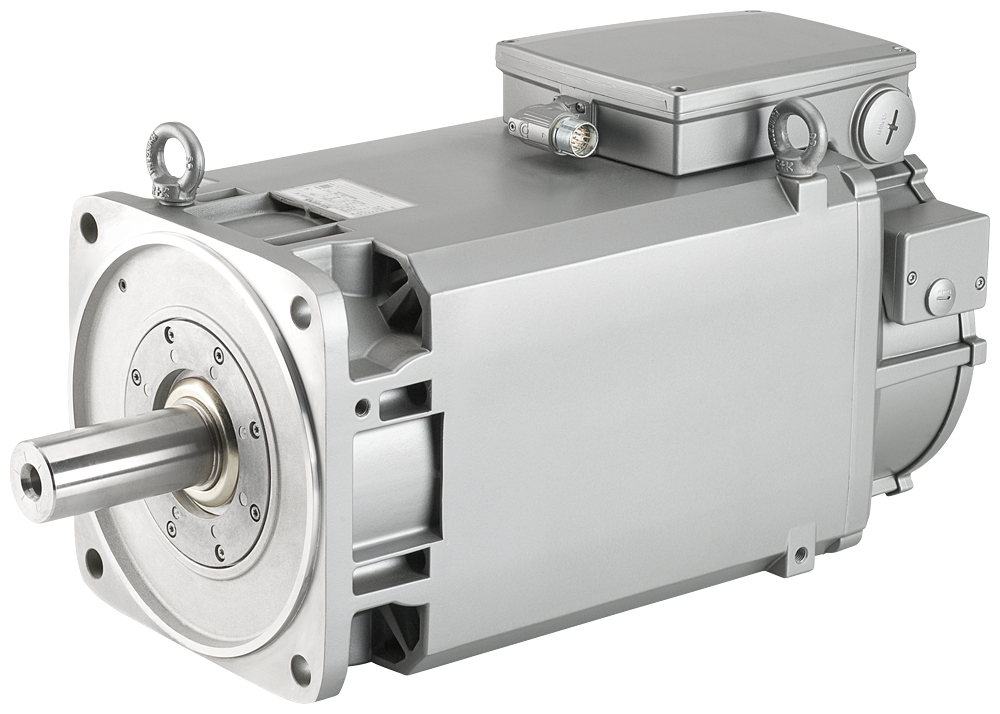

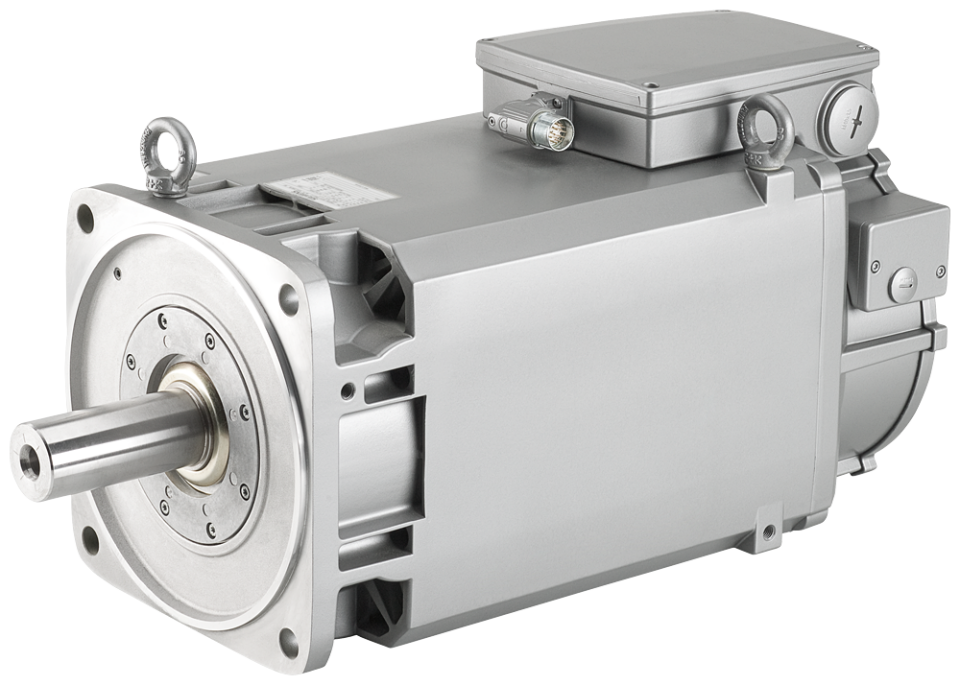

1PH8131-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 11 kW

SIMOTICS M compact asynchronous motor 1500 rpm 11 kW 70 Nm 24 A 360 V 1750 rpm 13 kW 71 Nm 24 A 416 V 2000 rpm 15 kW 72 Nm 24 A 460 V 2200 rpm 16.5 kW 72 Nm 24 A 500 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
