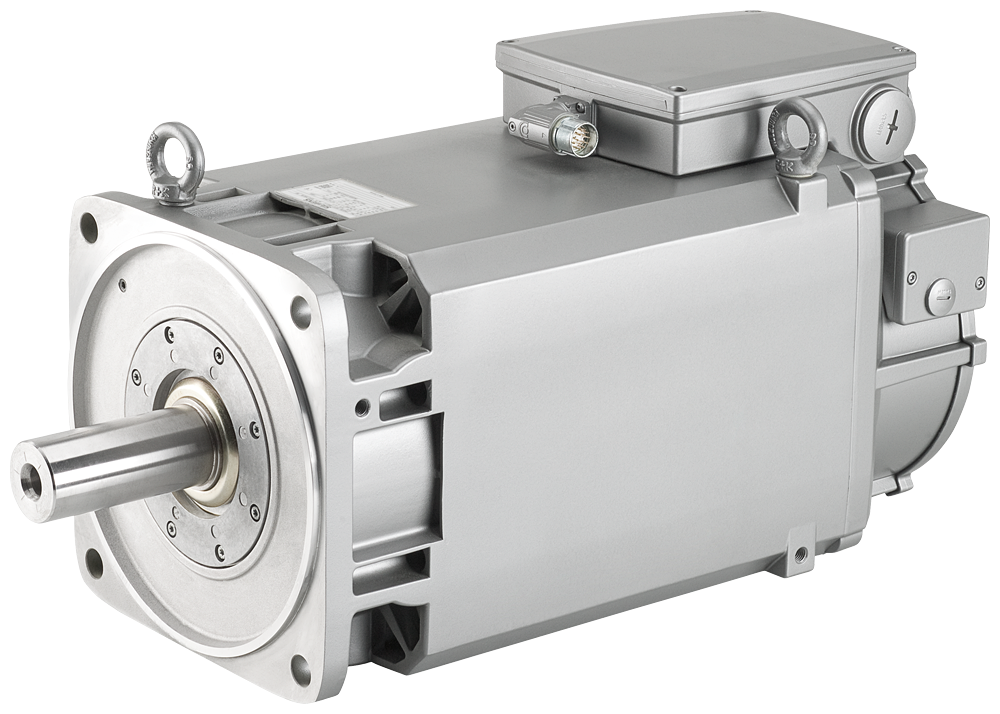

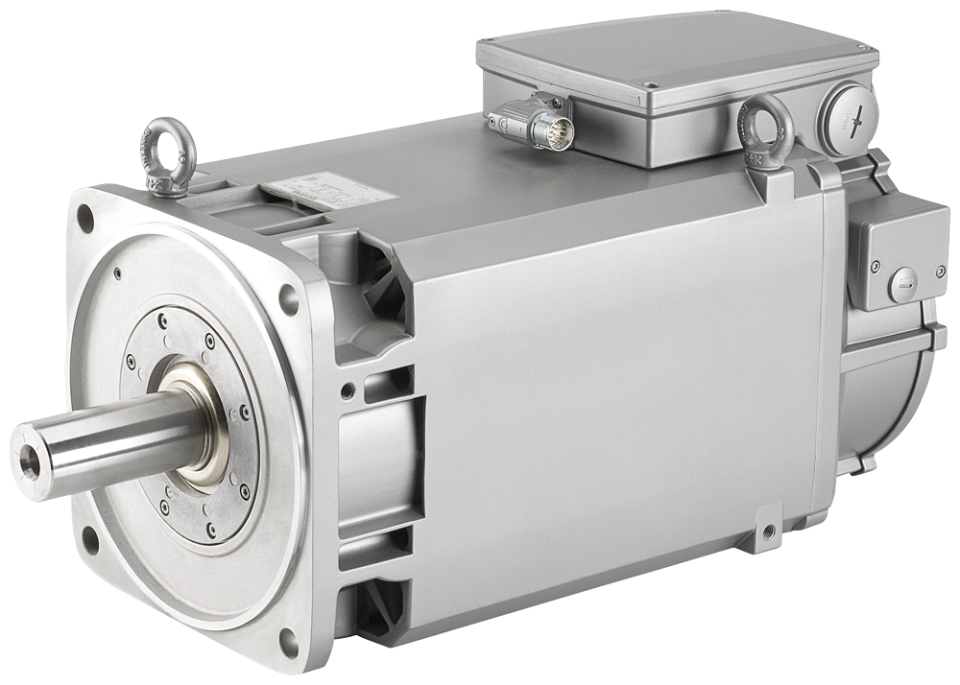

1PH8133-1AD00-2BA2 SIMOTICS M compact asynchronous motor 1000 rpm 12 kW

SIMOTICS M compact asynchronous motor 1000 rpm 12 kW 115 Nm 30 A 319 V 1150 rpm 13.5 kW 112 Nm 29 A 361 V 1350 rpm 15 kW 106 Nm 28 A 417 V 1500 rpm 16.6 kW 106 Nm 28 A 459 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
