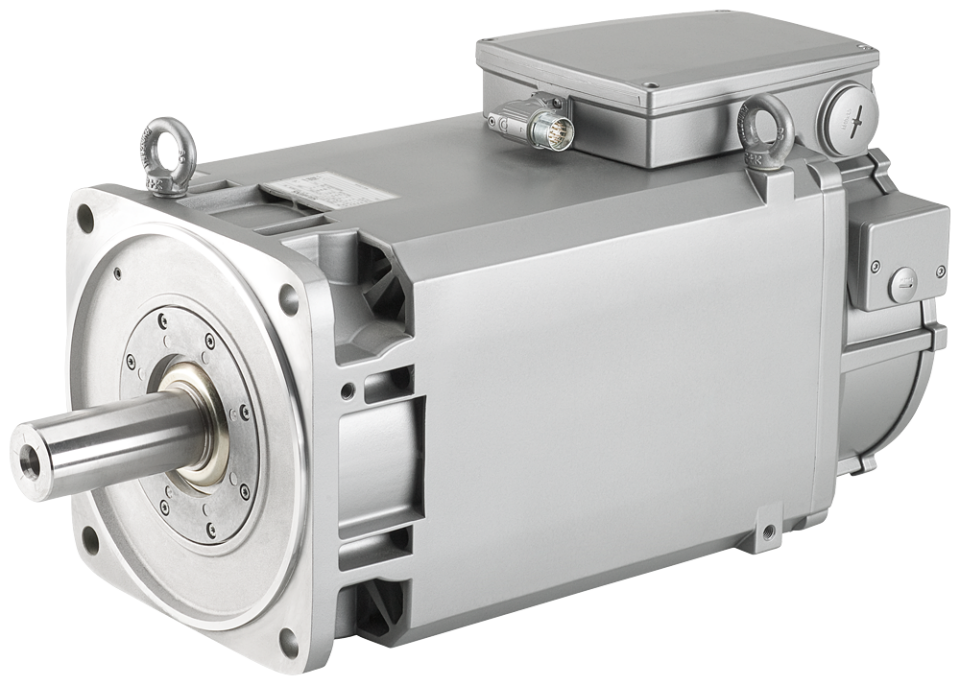

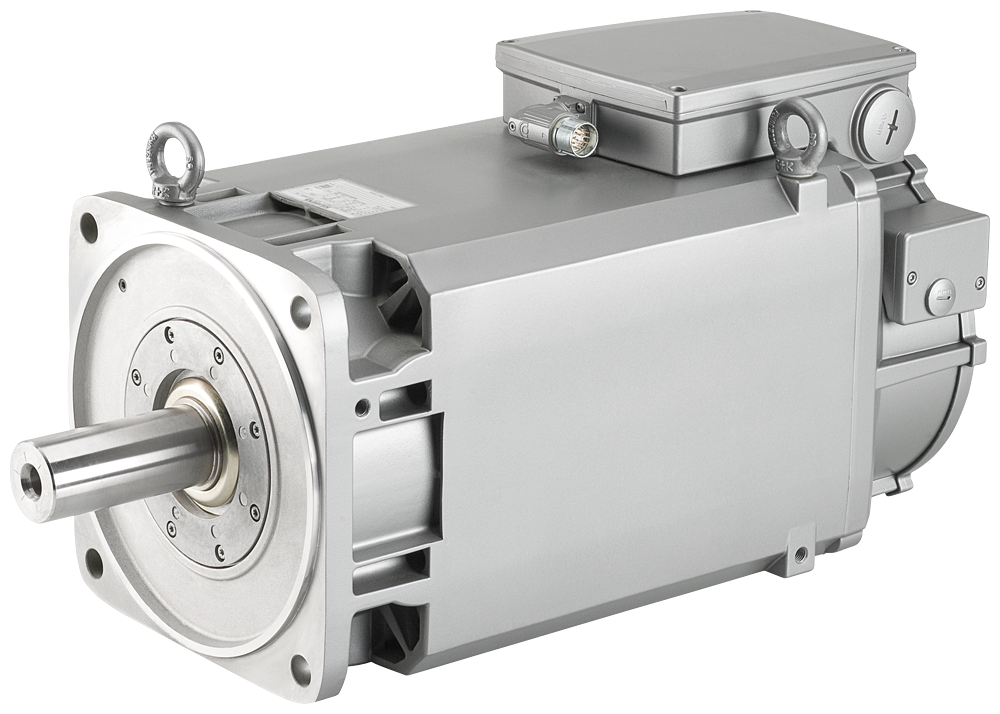

1PH8135-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 18.5

SIMOTICS M compact asynchronous motor 1500 rpm 18.5 kW 118 Nm 43 A 330 V 1750 rpm 21.5 kW 117 Nm 43 A 383 V 2000 rpm 24 kW 115 Nm 43 A 434 V 2200 rpm 26.4 kW 115 Nm 43 A 468 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
