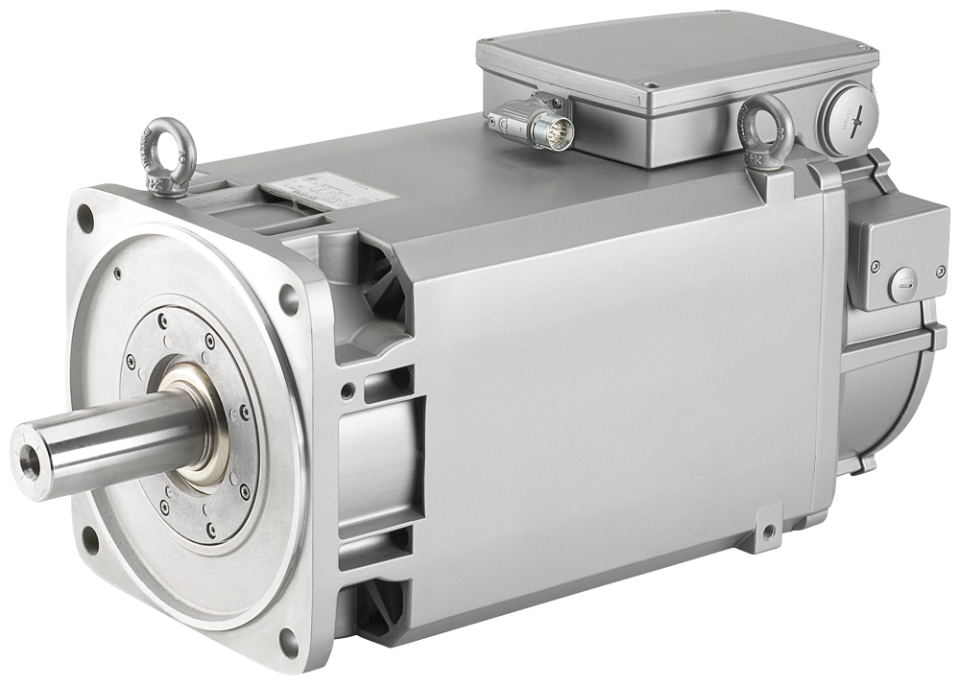

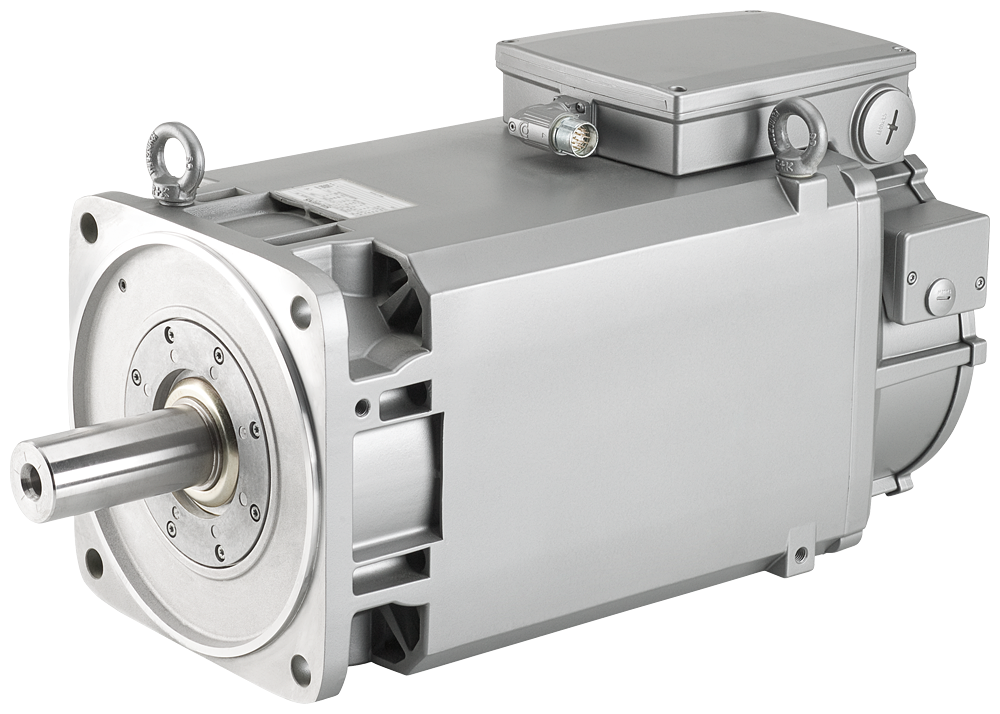

1PH8137-1AD00-2BA2 SIMOTICS M compact asynchronous motor 1000 rpm 17 kW

SIMOTICS M compact asynchronous motor 1000 rpm 17 kW 162 Nm 43 A 307 V 1150 rpm 19.5 kW 162 Nm 43 A 350 V 1350 rpm 22 kW 156 Nm 42 A 404 V 1500 rpm 24 kW 153 Nm 41 A 447 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
