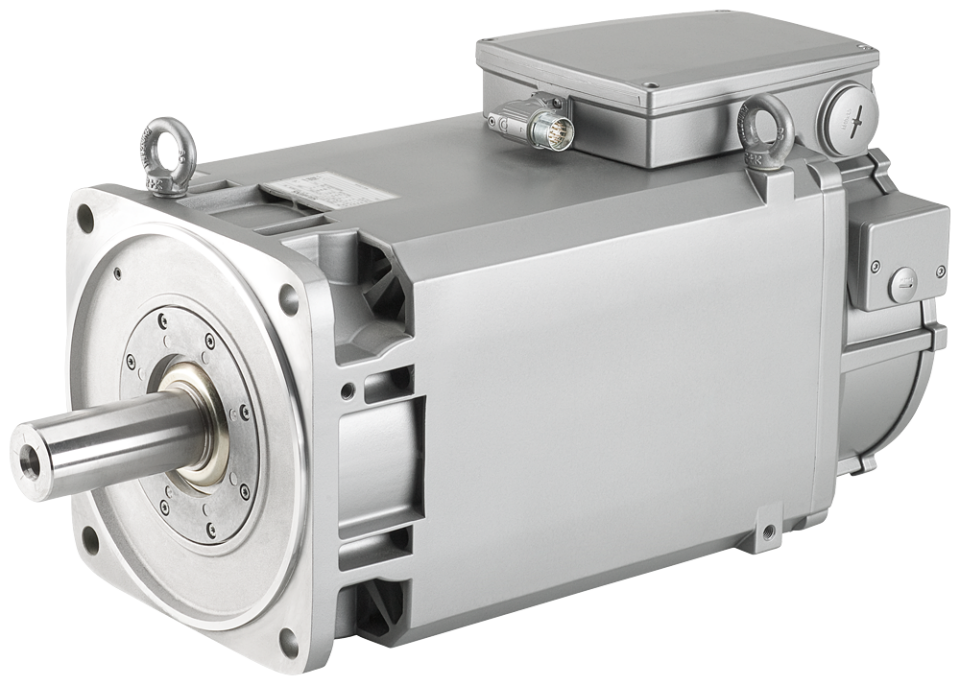

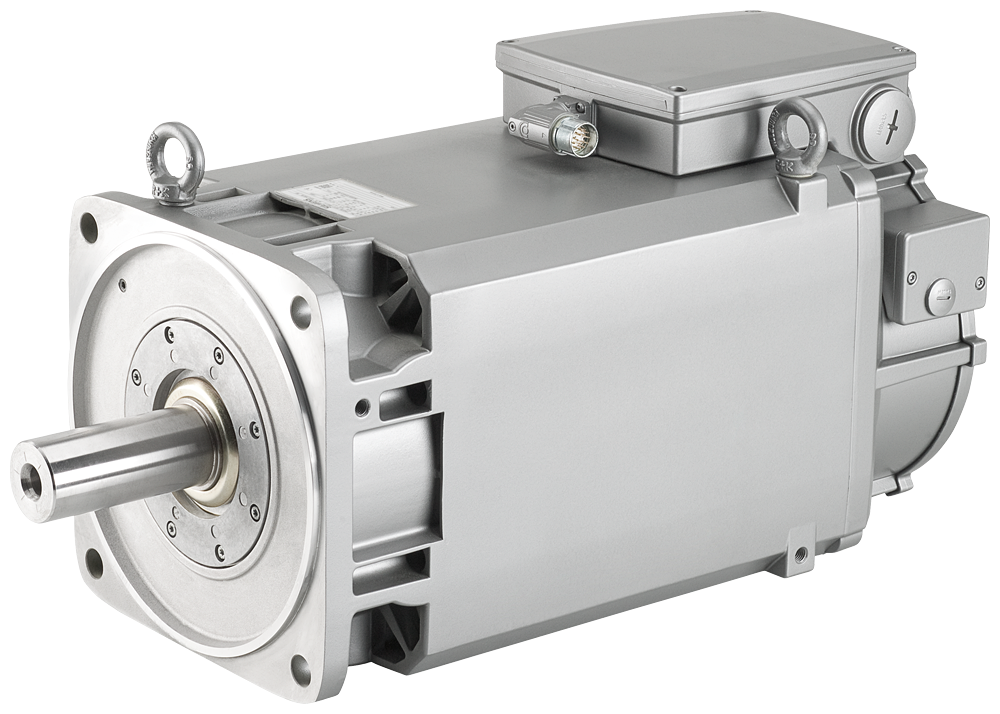

1PH8137-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 22 kW

SIMOTICS M compact asynchronous motor 1500 rpm 22 kW 140 Nm 56 A 308 V 1750 rpm 25 kW 136 Nm 56 A 352 V 2000 rpm 28 kW 134 Nm 55 A 401 V 2200 rpm 30 kW 130 Nm 53 A 440 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
