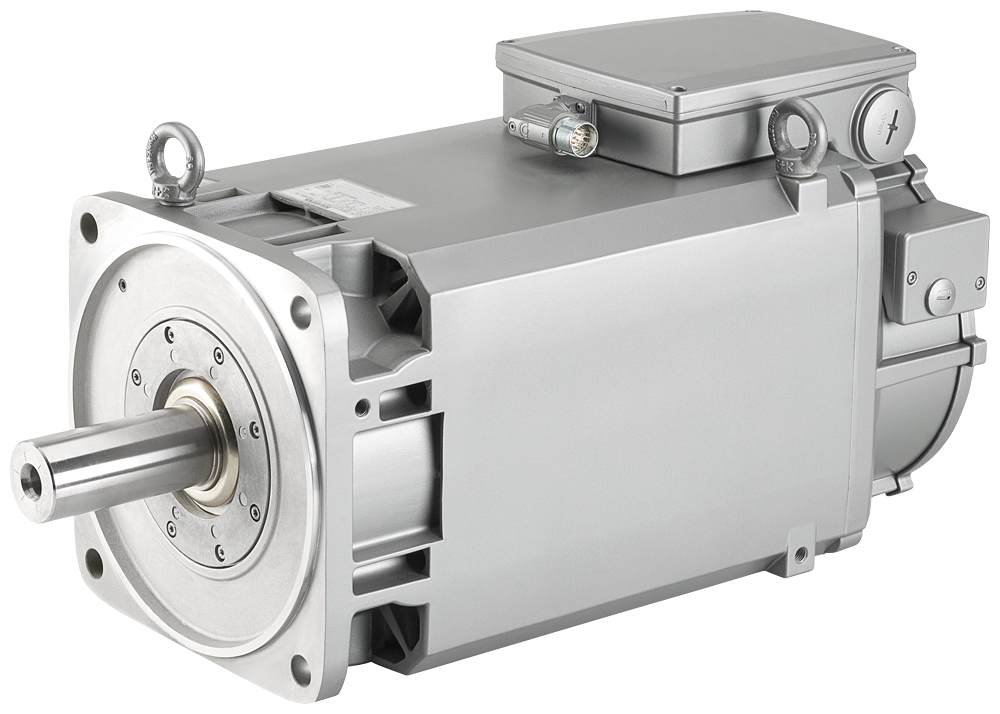

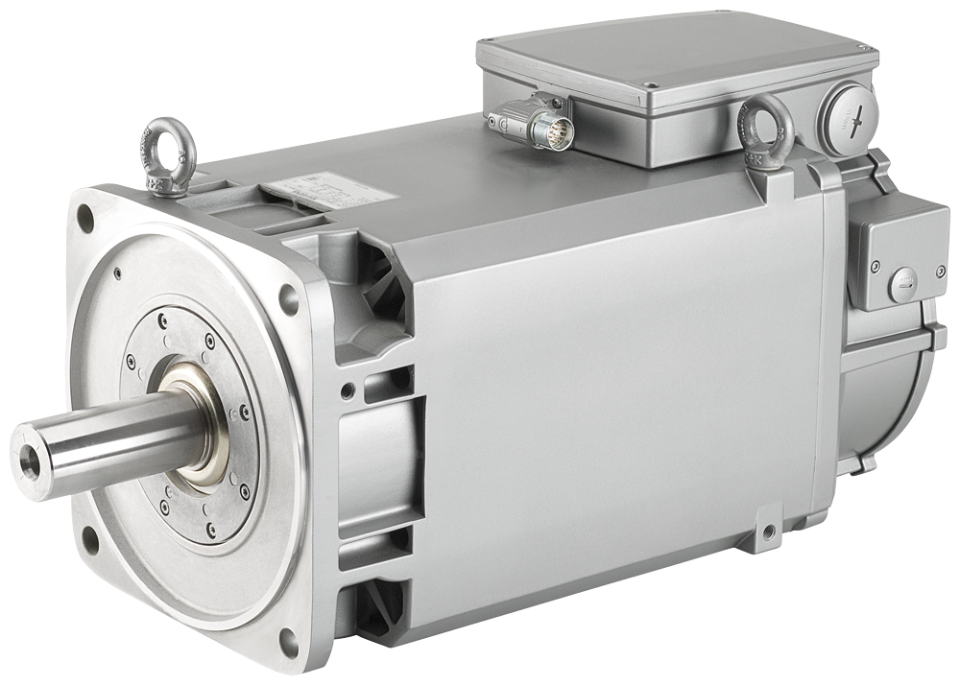

1PH8163-1AD00-2BA2 SIMOTICS M compact asynchronous motor 1000 rpm 22 kW

SIMOTICS M compact asynchronous motor 1000 rpm 22 kW 210 Nm 55 A 300 V 1150 rpm 25 kW 208 Nm 55 A 343 V 1350 rpm 28 kW 198 Nm 52 A 400 V 1500 rpm 31 kW 197 Nm 52 A 442 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
