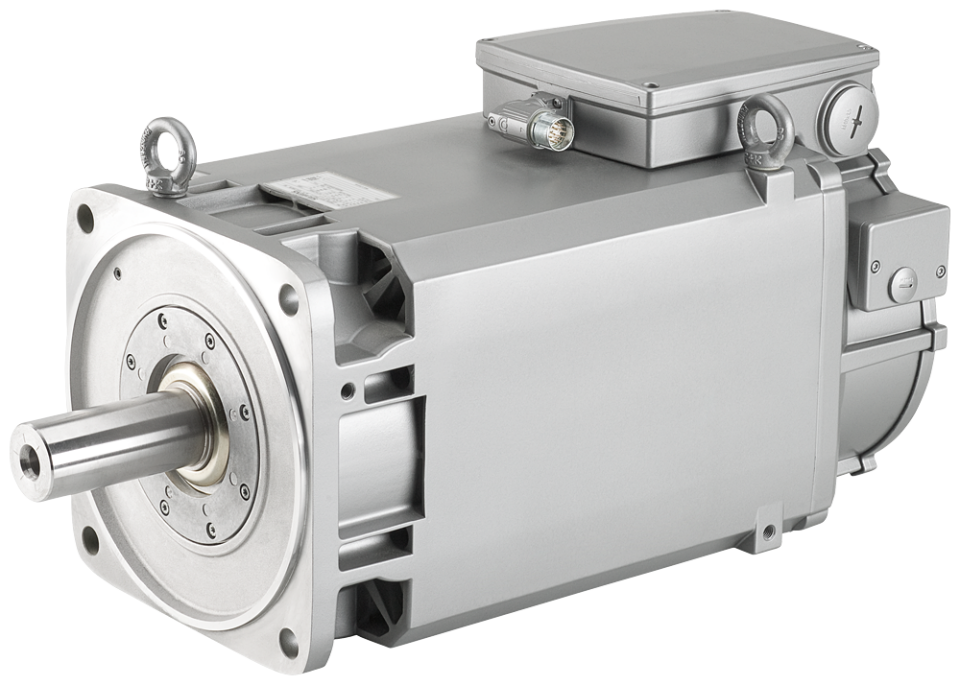

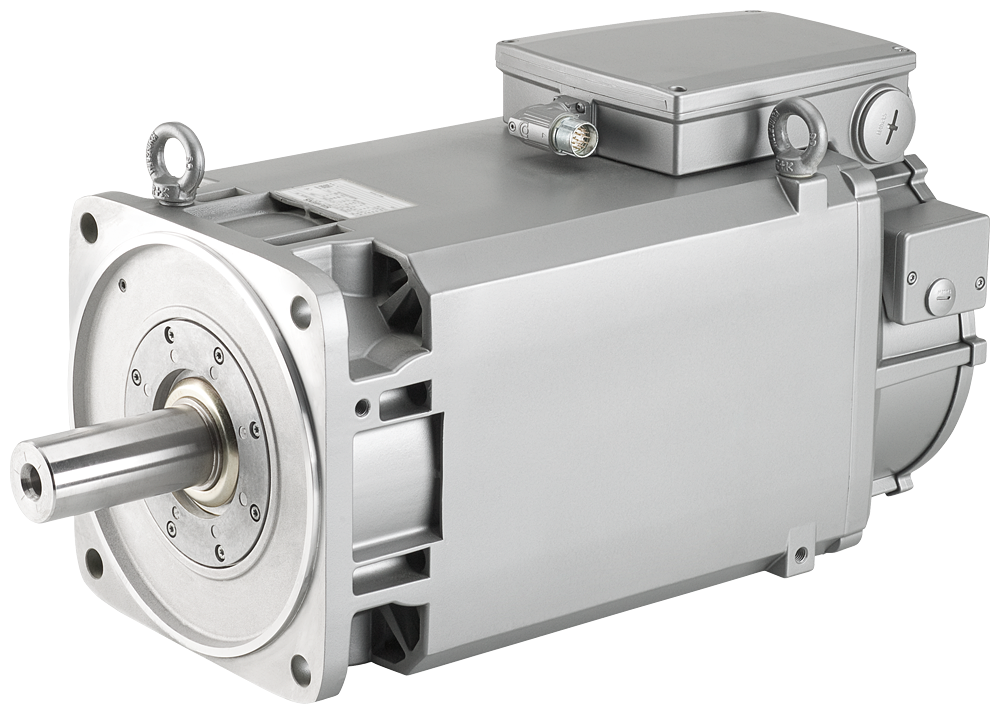

1PH8163-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 30 kW

SIMOTICS M compact asynchronous motor 1500 rpm 30 kW 191 Nm 71 A 319 V 1750 rpm 34 kW 186 Nm 70 A 366 V 2000 rpm 37 kW 177 Nm 68 A 416 V 2200 rpm 40.7 kW 177 Nm 68 A 456 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
