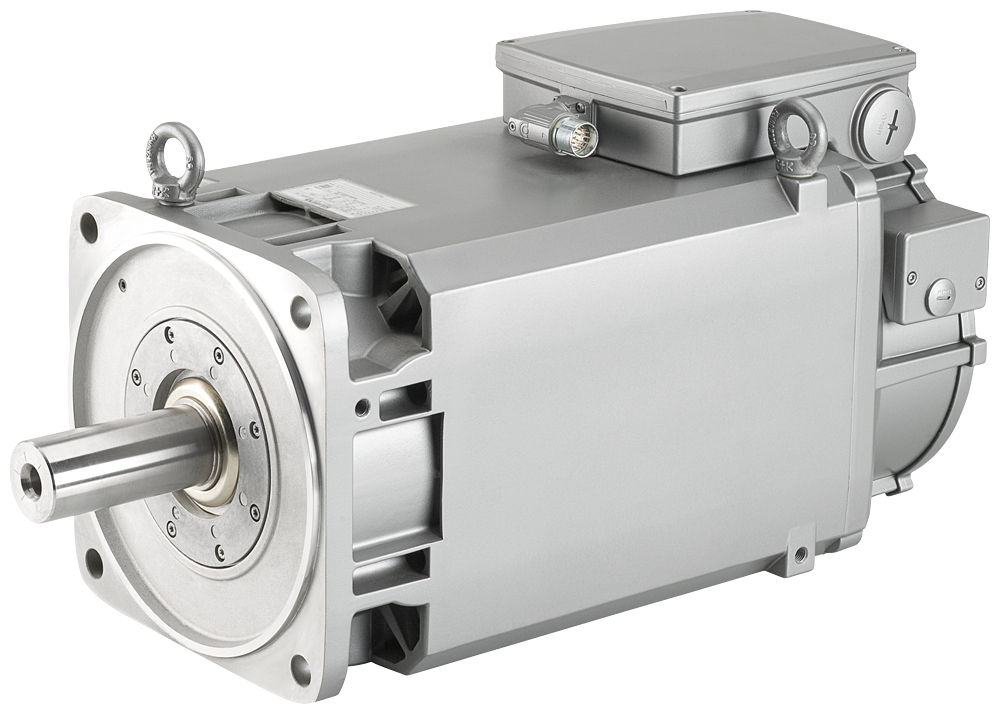

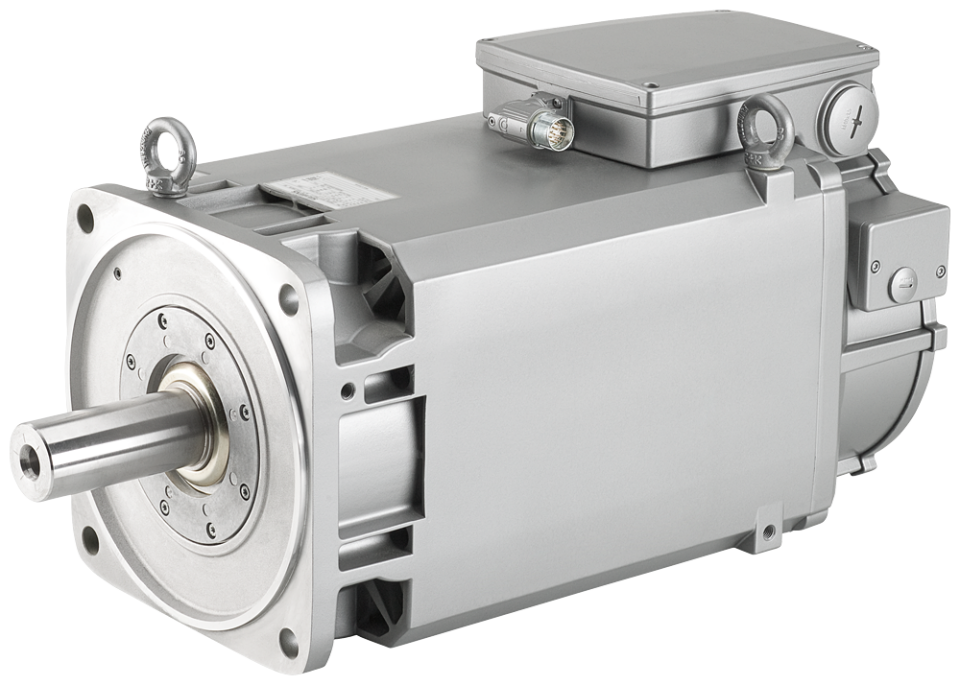

1PH8165-1AD00-2BA2 SIMOTICS M compact asynchronous motor 1000 rpm 28 kW

SIMOTICS M compact asynchronous motor 1000 rpm 28 kW 267 Nm 71 A 292 V 1150 rpm 31 kW 257 Nm 69 A 333 V 1350 rpm 34 kW 241 Nm 66 A 387 V 1500 rpm 37.7 kW 240 Nm 65 A 430 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
