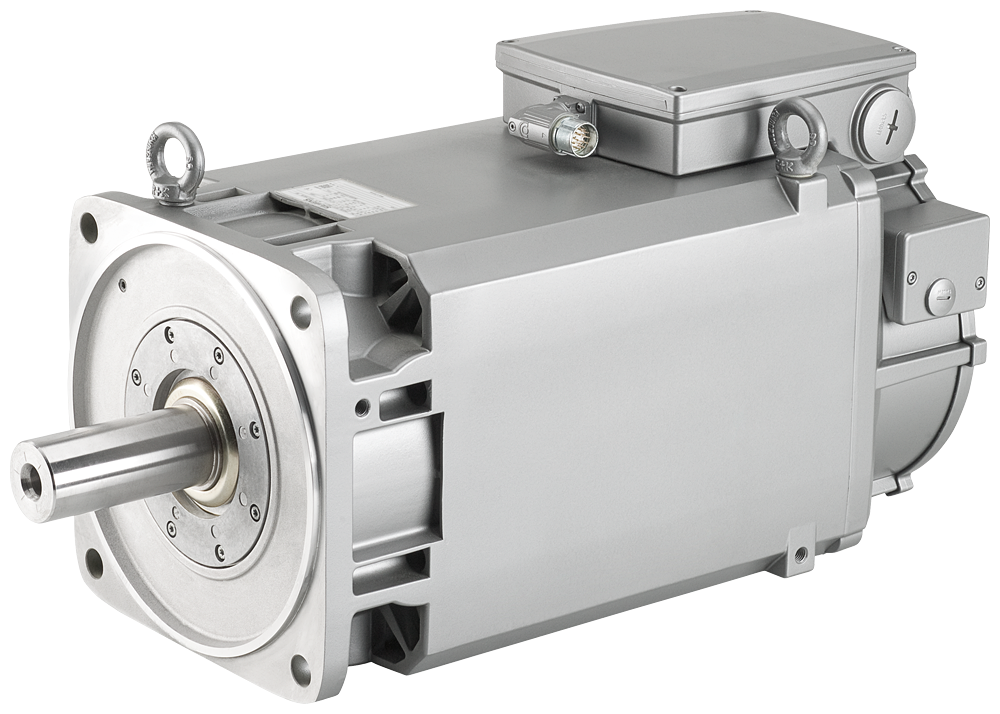

1PH8165-1AF00-2BA2 SIMOTICS M compact asynchronous motor 1500 rpm 37 kW

SIMOTICS M compact asynchronous motor 1500 rpm 37 kW 236 Nm 78 A 350 V 1750 rpm 41 kW 224 Nm 76 A 400 V 2000 rpm 45 kW 215 Nm 75 A 440 V 2200 rpm 49.5 kW 215 Nm 75 A 493 V forced ventilation; direction of air flow DE --> NDE; IP55 degree of protection W/O ENCODER with TEMPERAT. SENSOR PT1000 DESIGN IM B3 (IM V5, IM V6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE R/A; SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
