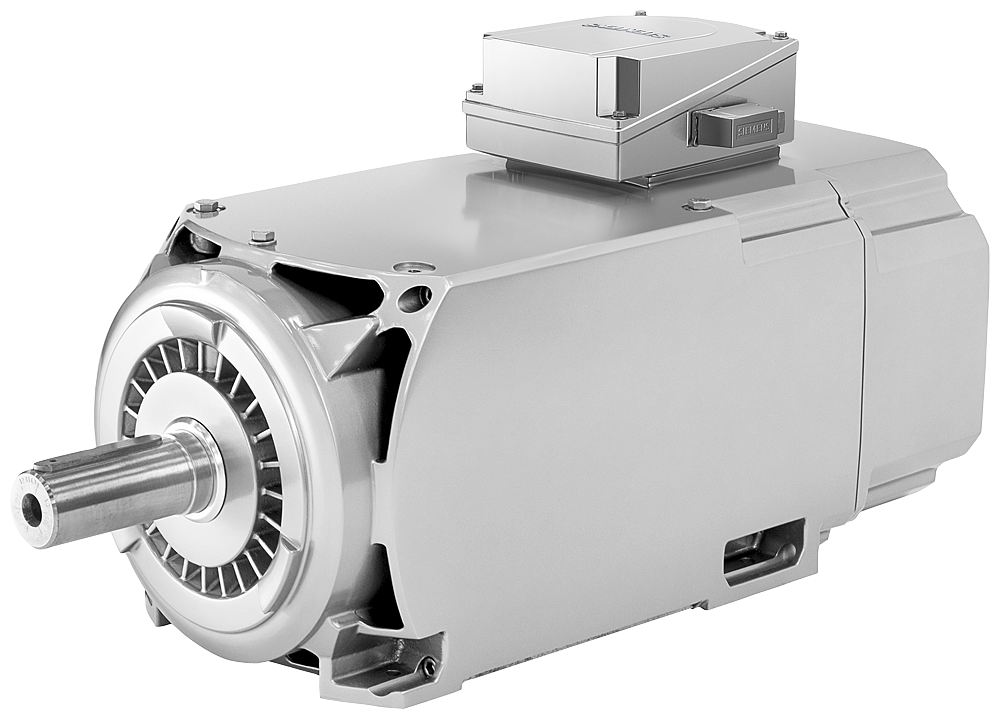

1PH8184-1AF00-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 51

SIMOTICS M Compact asynchronous motor 1500 rpm, 51 kW, 325 Nm, 116 A, 335 V 1750 rpm, 60 kW, 327 Nm, 120 A, 390 V 2000 rpm, 68 kW, 325 Nm, 118 A, 405 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
