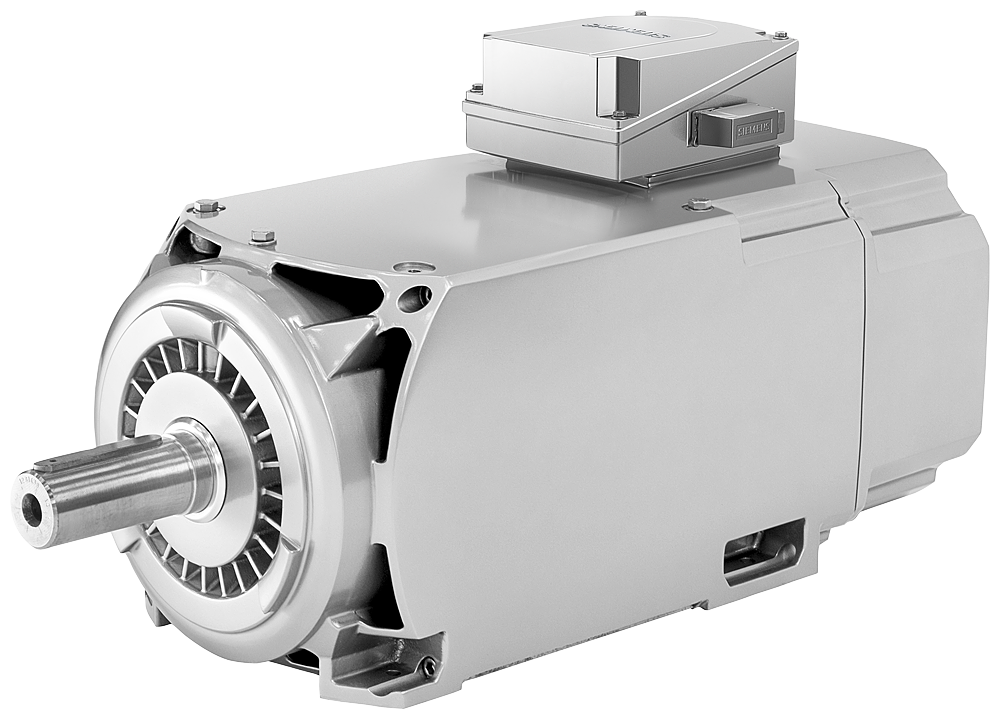

1PH8186-1AD00-2BA2 SIMOTICS M Compact asynchronous motor 1000 rpm, 51

SIMOTICS M Compact asynchronous motor 1000 rpm, 51 kW, 487 Nm, 112 A, 340 V 1150 rpm, 58 kW, 482 Nm, 112 A, 390 V 1350 rpm, 67 kW, 474 Nm, 112 A, 450 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
