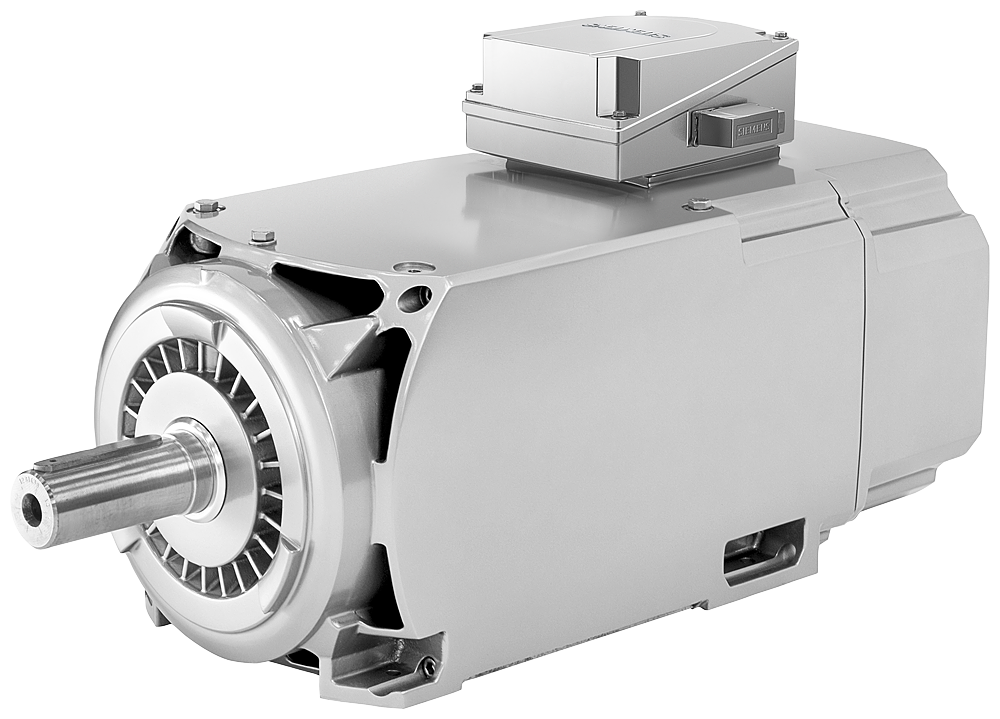

1PH8186-1AF30-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 108

SIMOTICS M Compact asynchronous motor 1500 rpm, 108 kW, 688 Nm, 225 A, 330 V 1750 rpm, 125 kW, 682 Nm, 225 A, 385 V 2000 rpm, 135 kW, 645 Nm, 210 A, 445 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
