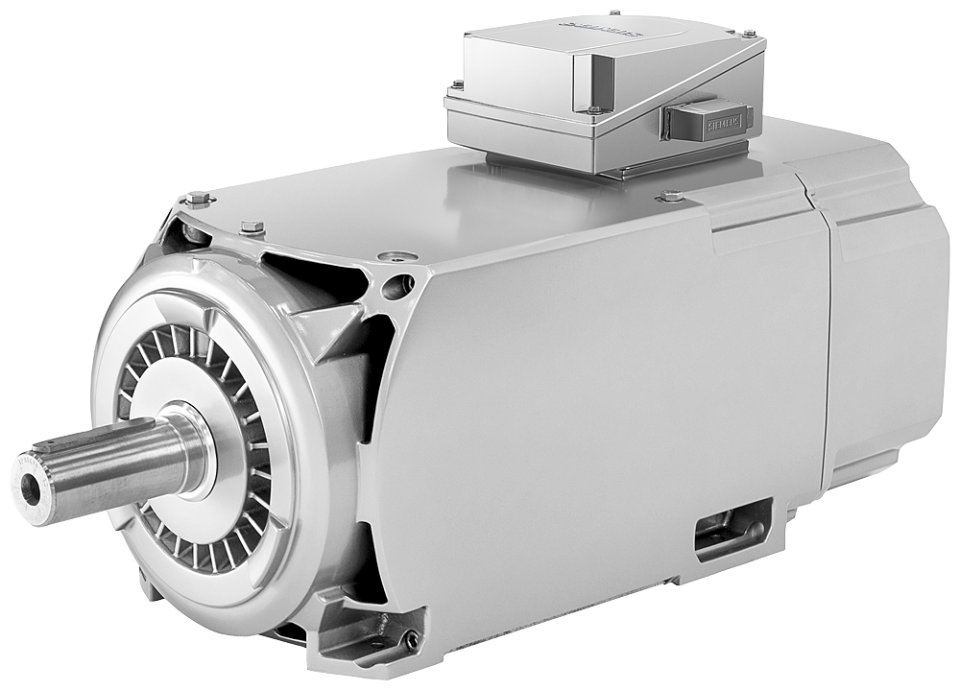

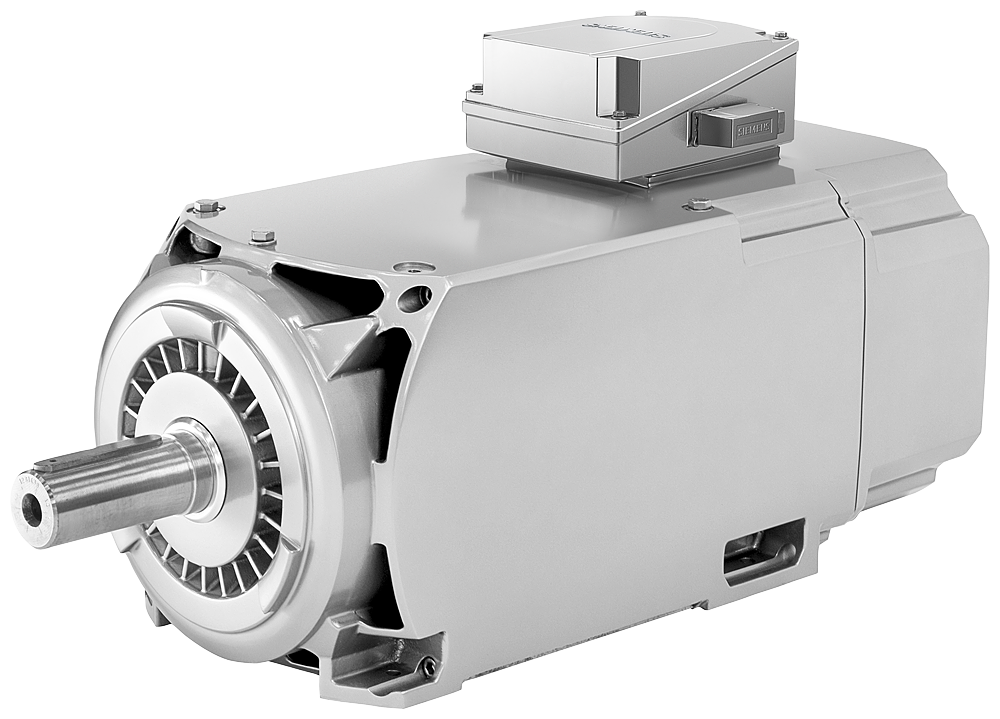

1PH8224-1AD00-2BA2 SIMOTICS M Compact asynchronous motor 1000 rpm, 71

SIMOTICS M Compact asynchronous motor 1000 rpm, 71 kW, 678 Nm, 158 A, 335 V 1150 rpm, 81 kW, 673 Nm, 156 A, 385 V 1350 rpm, 92 kW, 651 Nm, 154 A, 450 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
