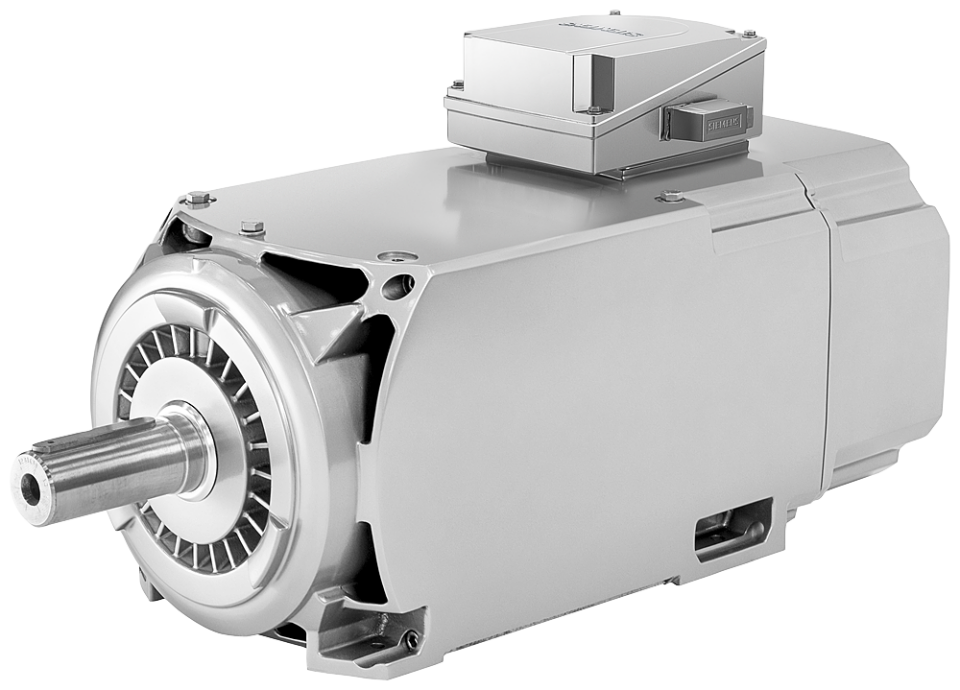

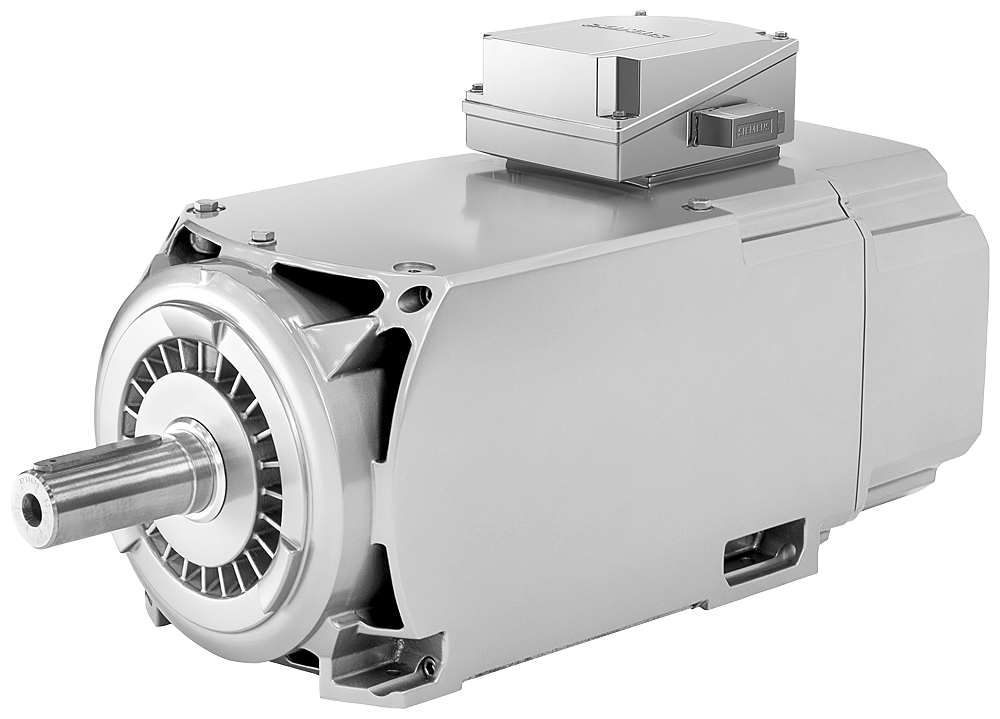

1PH8224-1AF30-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 142

SIMOTICS M Compact asynchronous motor 1500 rpm, 142 kW, 904 Nm, 290 A, 340 V 1750 rpm, 165 kW, 900 Nm, 285 A, 395 V 2000 rpm, 178 kW, 850 Nm, 265 A, 460 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
