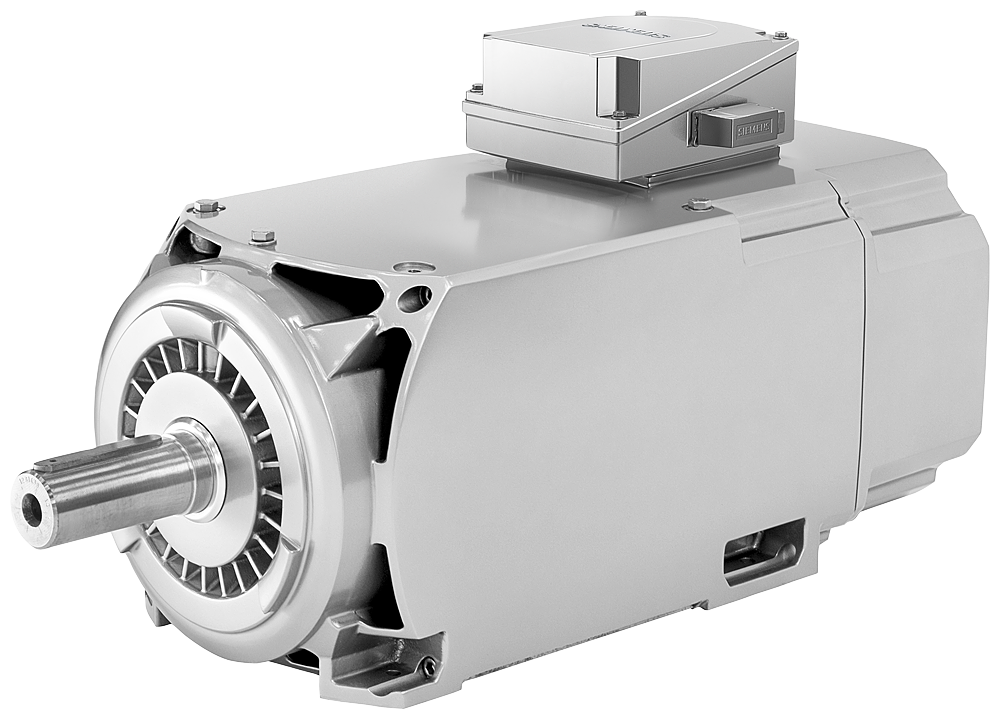

1PH8226-1AD30-2BA2 SIMOTICS M Compact asynchronous motor 1000 rpm, 135

SIMOTICS M Compact asynchronous motor 1000 rpm, 135 kW, 1289 Nm, 275 A, 340 V 1150 rpm, 155 kW, 1287 Nm, 270 A, 390 V 1350 rpm, 172 kW, 1217 Nm, 255 A, 460 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
