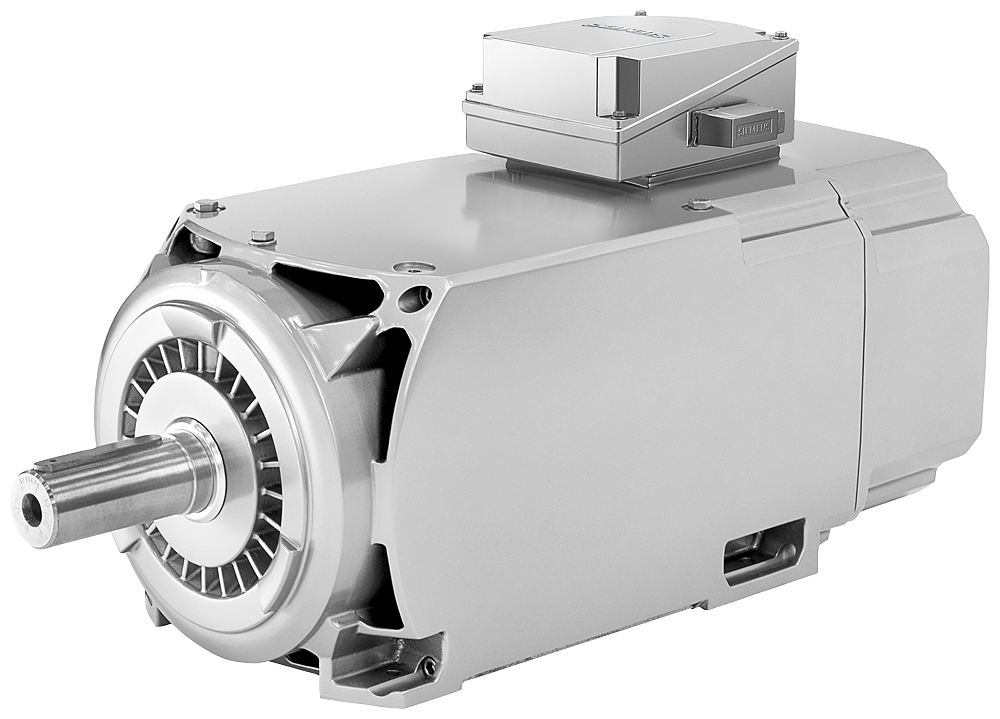

1PH8226-1AF00-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 130

SIMOTICS M Compact asynchronous motor 1500 rpm, 130 kW, 828 Nm, 270 A, 340 V 1750 rpm, 135 kW, 737 Nm, 250 A, 395 V 2000 rpm, 153 kW, 731 Nm, 254 A, 450 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
