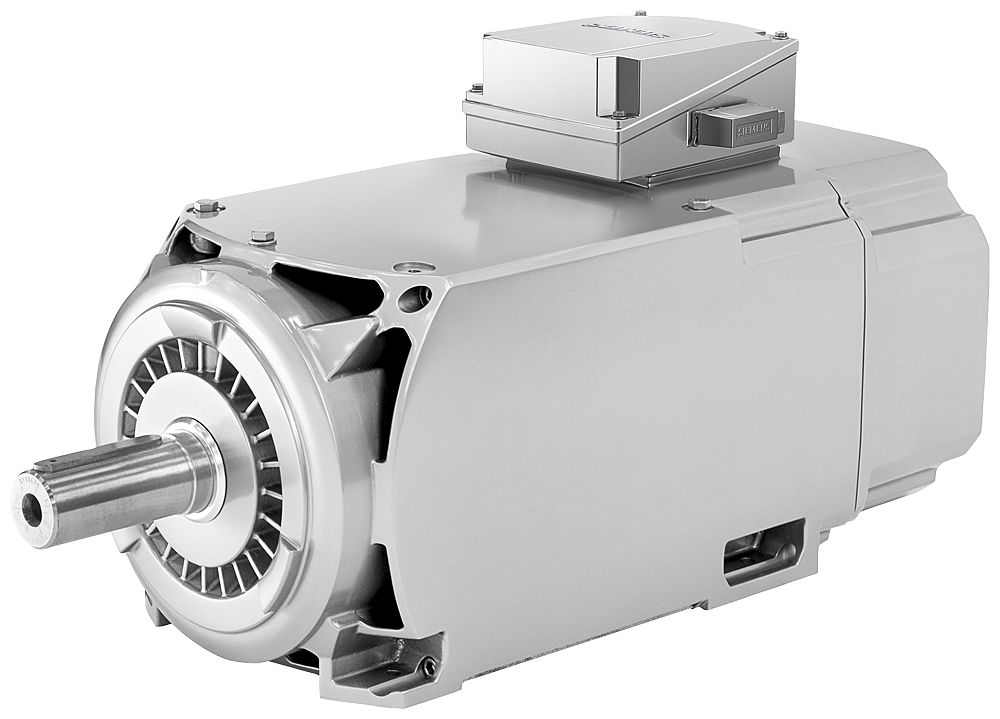

1PH8226-1AF30-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 175

SIMOTICS M Compact asynchronous motor 1500 rpm, 175 kW, 1114 Nm, 350 A, 340 V 1750 rpm, 200 kW, 1091 Nm, 350 A, 390 V 2000 rpm, 220 kW, 1051 Nm, 335 A, 450 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
