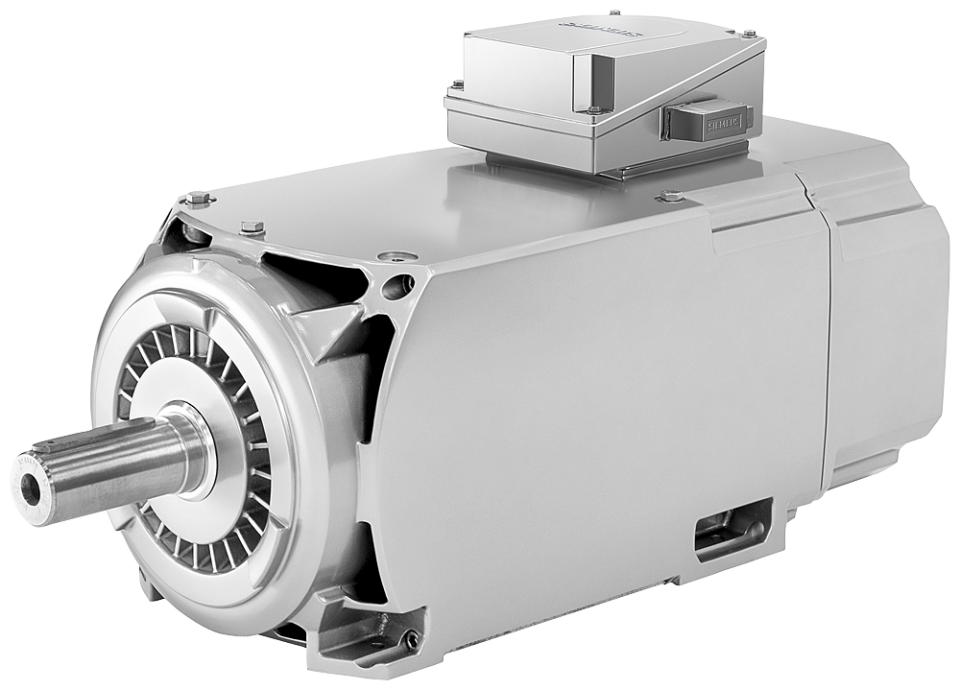

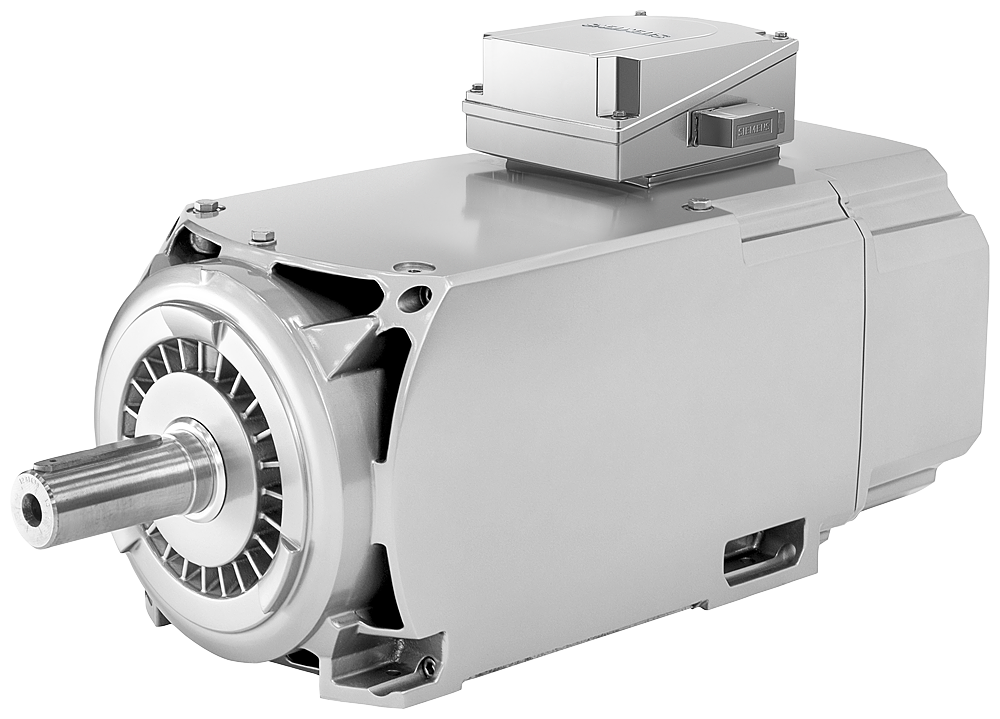

1PH8228-1AD00-2BA2 SIMOTICS M Compact asynchronous motor 1000 rpm, 113

SIMOTICS M Compact asynchronous motor 1000 rpm, 113 kW, 1079 Nm, 235 A, 340 V 1150 rpm, 129 kW, 1071 Nm, 235 A, 390 V 1350 rpm, 147 kW, 1040 Nm, 225 A, 460 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
