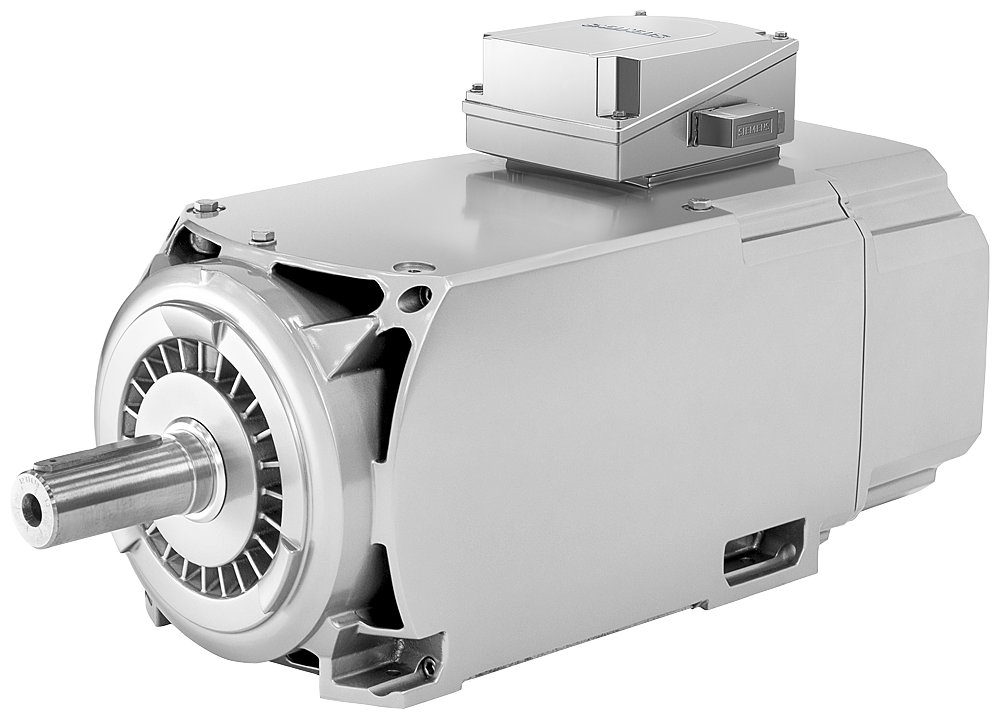

1PH8228-1AD30-2BA2 SIMOTICS M Compact asynchronous motor 1000 rpm, 165

SIMOTICS M Compact asynchronous motor 1000 rpm, 165 kW, 1576 Nm, 330 A, 340 V 1150 rpm, 190 kW, 1578 Nm, 330 A, 390 V 1350 rpm, 218 kW, 1542 Nm, 320 A, 460 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
