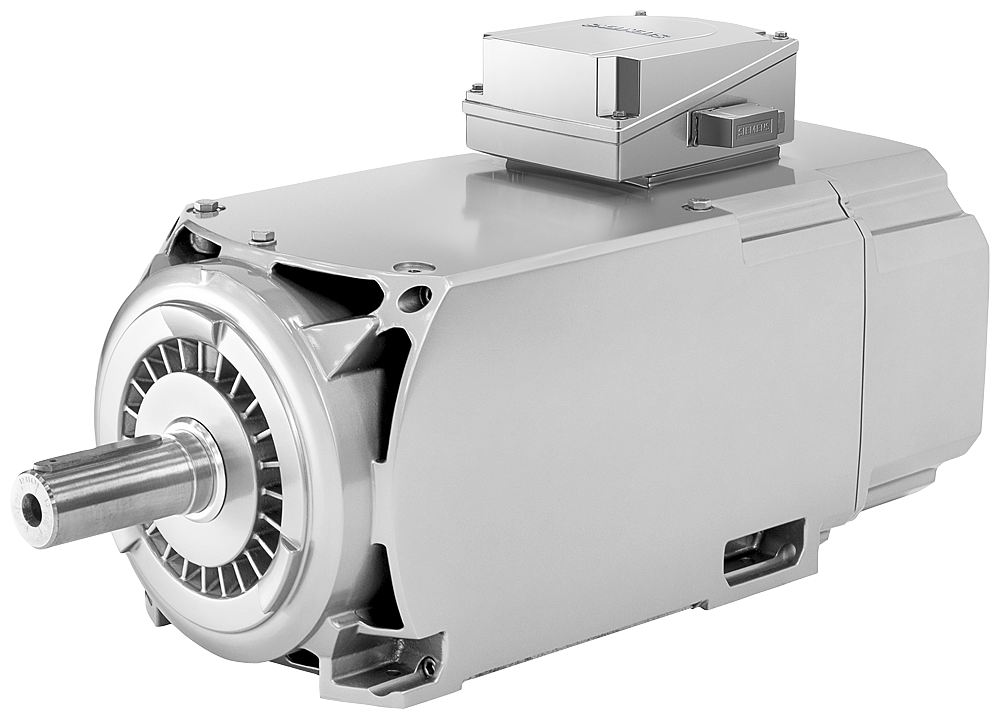

1PH8228-1AF00-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 160

SIMOTICS M Compact asynchronous motor 1500 rpm, 160 kW, 1019 Nm, 340 A, 340 V 1750 rpm, 179 kW, 977 Nm, 330 A, 395 V 2000 rpm, 196 kW, 936 Nm, 325 A, 450 V Forced ventilation Direction of air flow DE-->NDE Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
