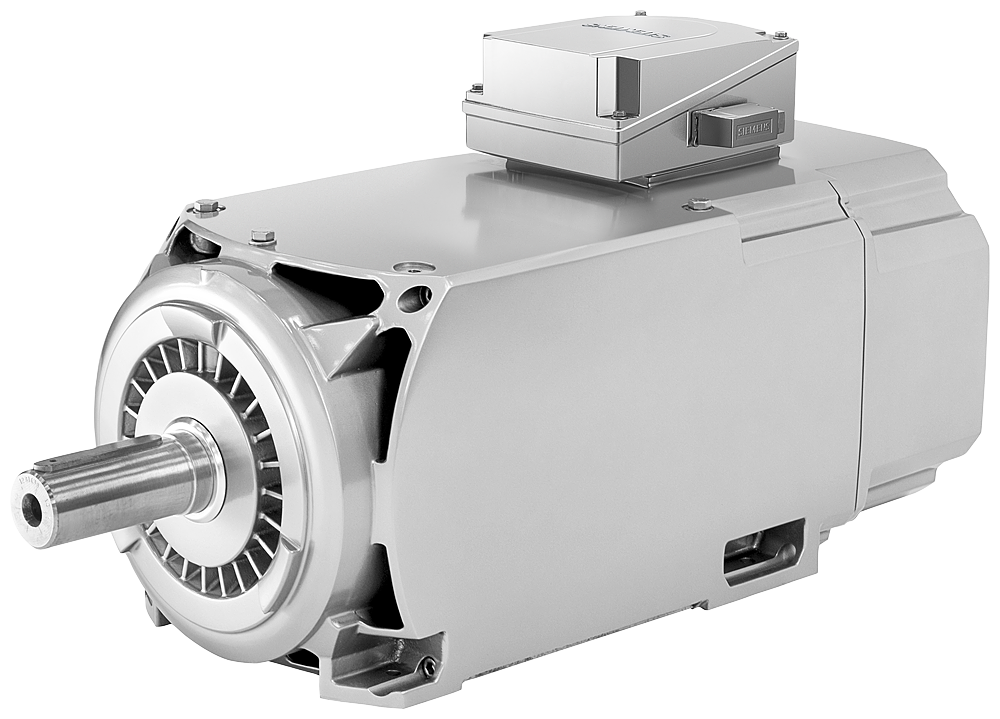

1PH8228-1AF30-2BA2 SIMOTICS M Compact asynchronous motor 1500 rpm, 230

SIMOTICS M Compact asynchronous motor 1500 rpm, 230 kW, 1464 Nm, 465 A, 340 V 1750 rpm, 265 kW, 1446 Nm, 460 A, 390 V 2000 rpm, 288 kW, 1375 Nm, 440 A, 450 V Open-circuit ventilation Direction of air flow DE-->NDE Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
