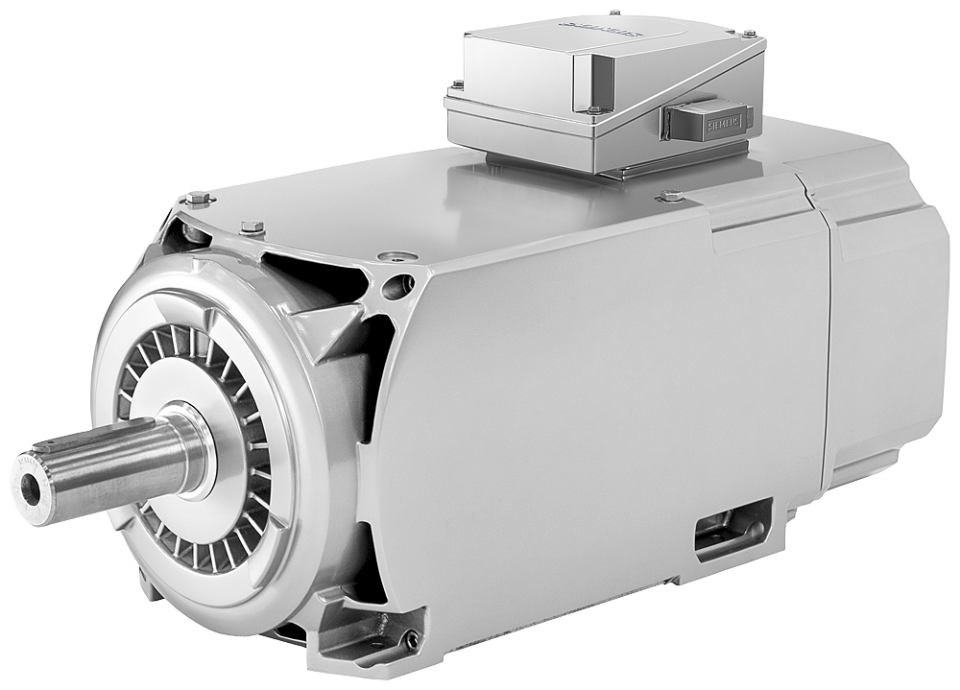

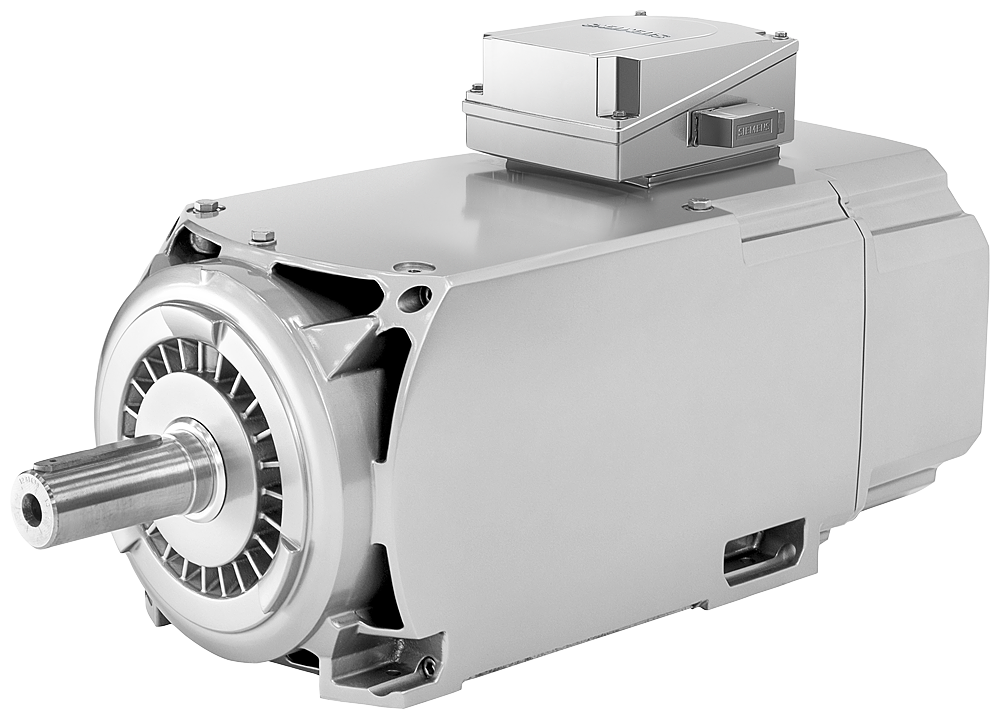

1PH8284-1AD10-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 150

SIMOTICS M Compact asynchronous motor 1000 rpm, 150 kW, 1433 Nm, 315 A, 335 V 1150 rpm, 170 kW, 1414 Nm, 310 A, 400 V 1350 rpm, 200 kW, 1416 Nm, 315 A, 460 V Forced ventilation Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX NDE RIGHT CABLE ENTRY BELOW SIGNAL CONNECTION D-END
