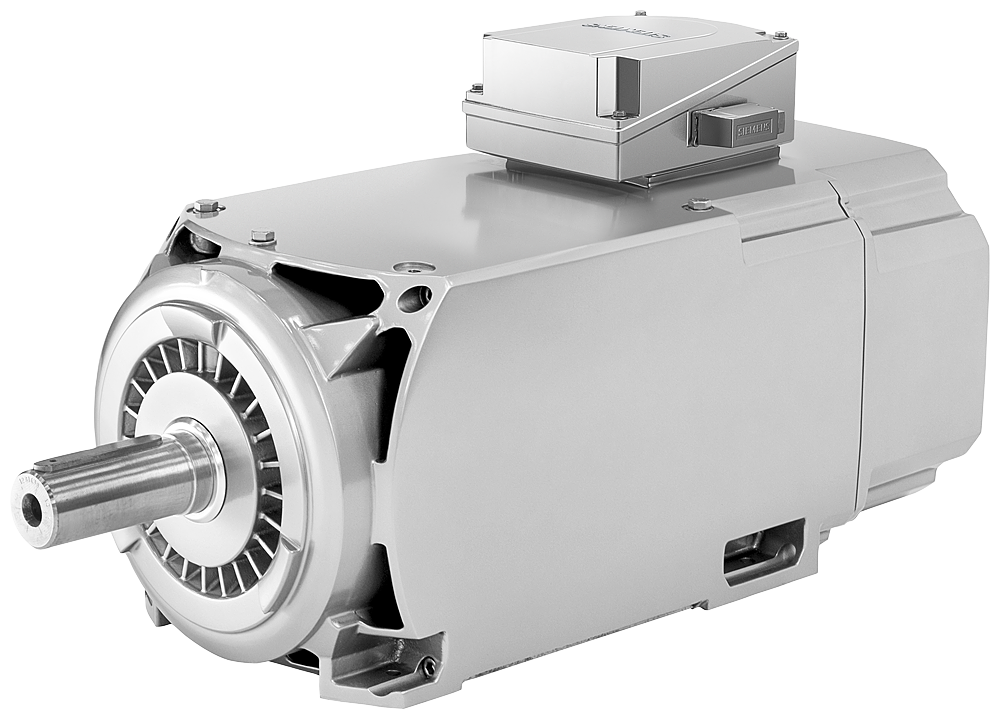

1PH8284-1AD40-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 243

SIMOTICS M Compact asynchronous motor 1000 rpm, 243 kW, 2321 Nm, 490 A, 335 V 1150 rpm, 280 kW, 2325 Nm, 475 A, 400 V 1350 rpm, 325 kW, 2299 Nm, 475 A, 460 V Open-circuit ventilation Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY BELOW SIGNAL CONNECTION D-END
