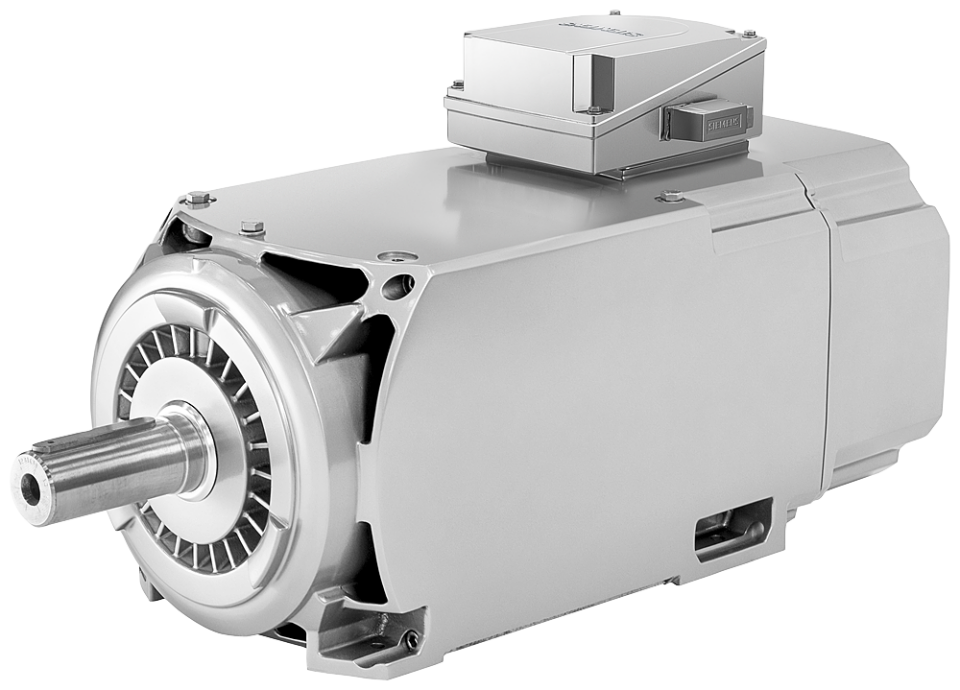

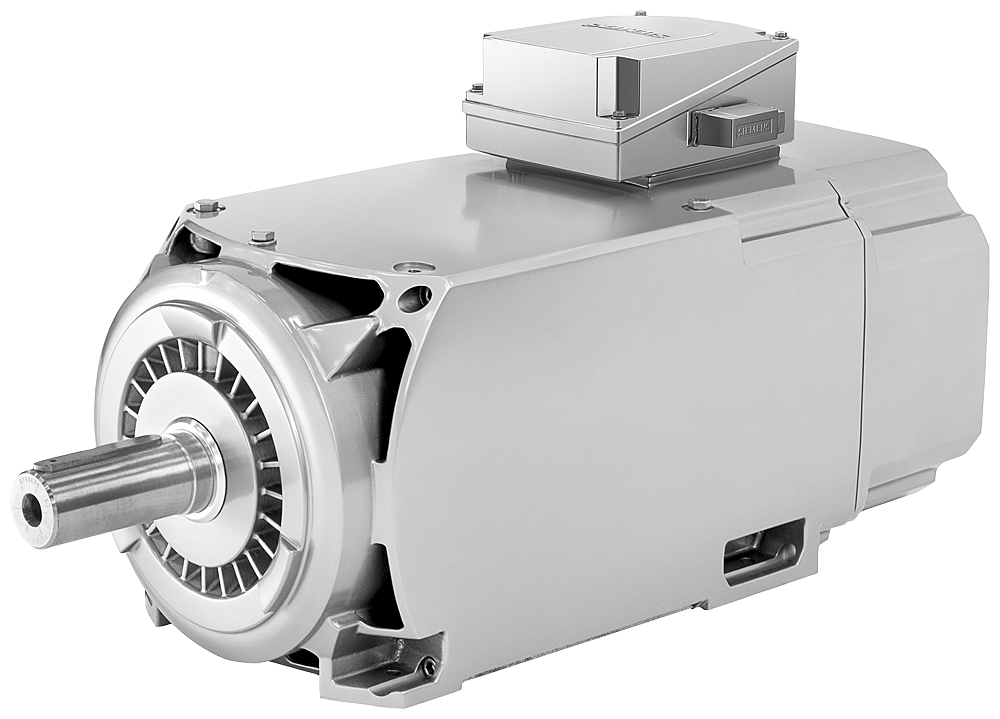

1PH8284-1AF10-2BU2 SIMOTICS M Compact asynchronous motor 1500 rpm, 196

SIMOTICS M Compact asynchronous motor 1500 rpm, 196 kW, 1248 Nm, 390 A, 345 V 1750 rpm, 225 kW, 1228 Nm, 390 A, 400 V 2000 rpm, 255 kW, 1218 Nm, 390 A, 455 V Forced ventilation Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX NDE RIGHT CABLE ENTRY BELOW SIGNAL CONNECTION D-END
