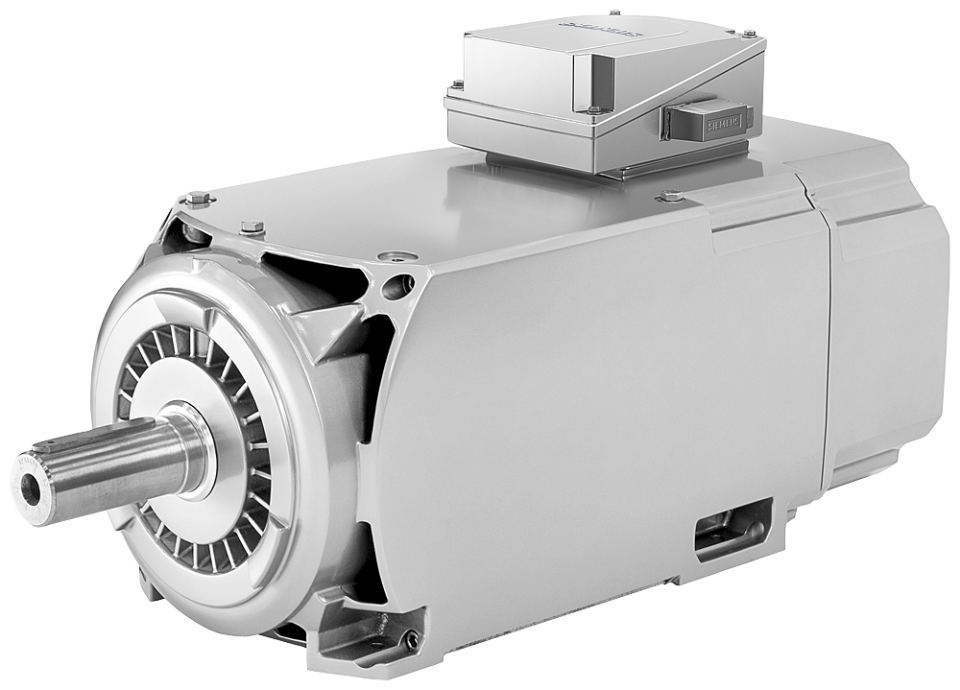

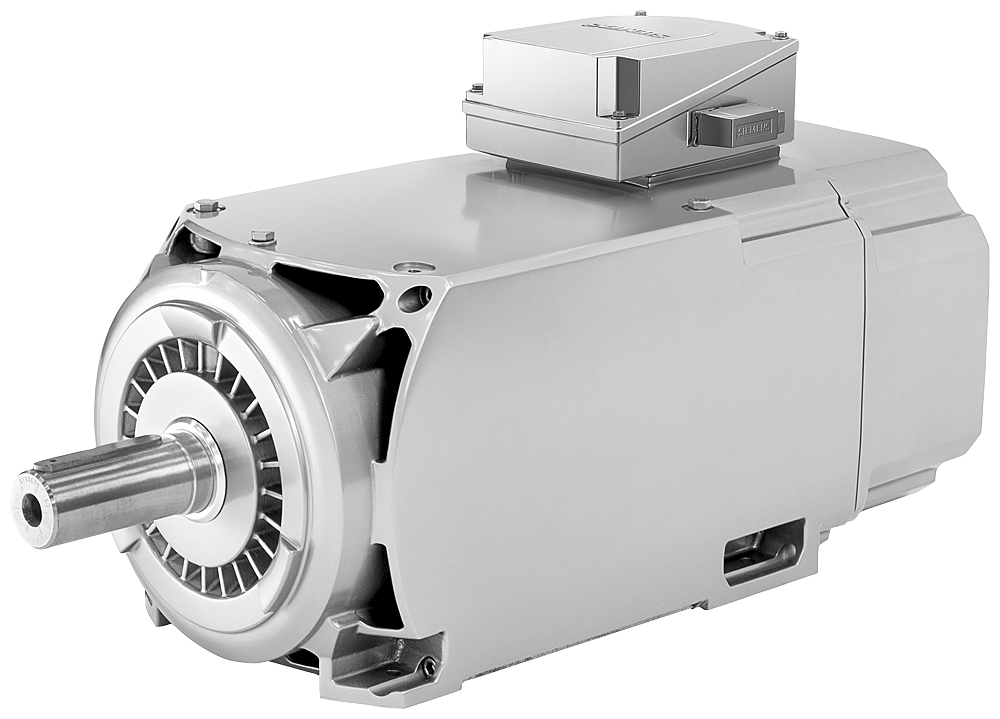

1PH8284-1AF40-2BU2 SIMOTICS M Compact asynchronous motor 1500 rpm, 319

SIMOTICS M Compact asynchronous motor 1500 rpm, 319 kW, 2031 Nm, 620 A, 345 V 1750 rpm, 370 kW, 2019 Nm, 610 A, 400 V 2000 rpm, 415 kW, 1981 Nm, 600 A, 455 V Open-circuit ventilation Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY BELOW SIGNAL CONNECTION D-END
