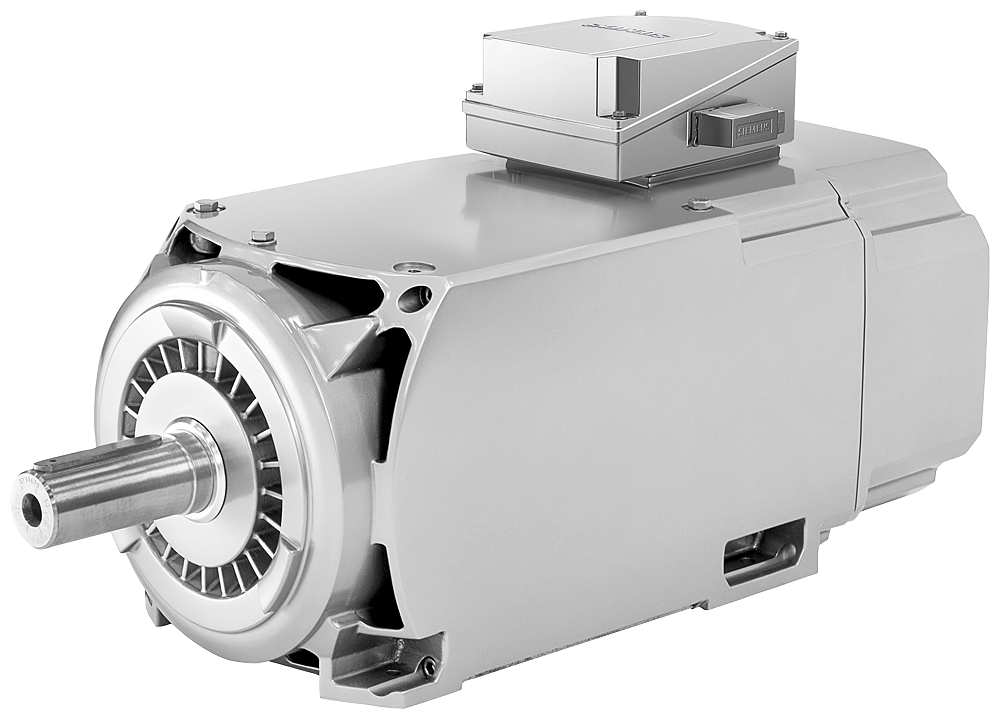

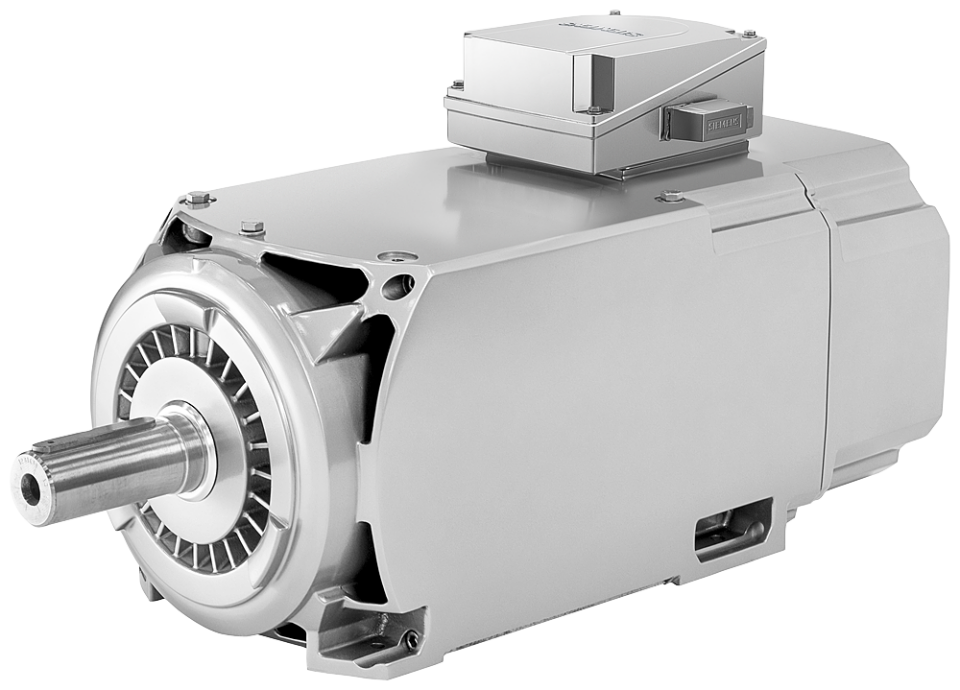

1PH8286-1AD10-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 182

SIMOTICS M Compact asynchronous motor 1000 rpm, 182 kW, 1738 Nm, 410 A, 330 V 1150 rpm, 210 kW, 1745 Nm, 410 A, 380 V 1350 rpm, 245 kW, 1733 Nm, 410 A, 445 V Forced ventilation Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX NDE RIGHT CABLE ENTRY BELOW SIGNAL CONNECTION D-END
