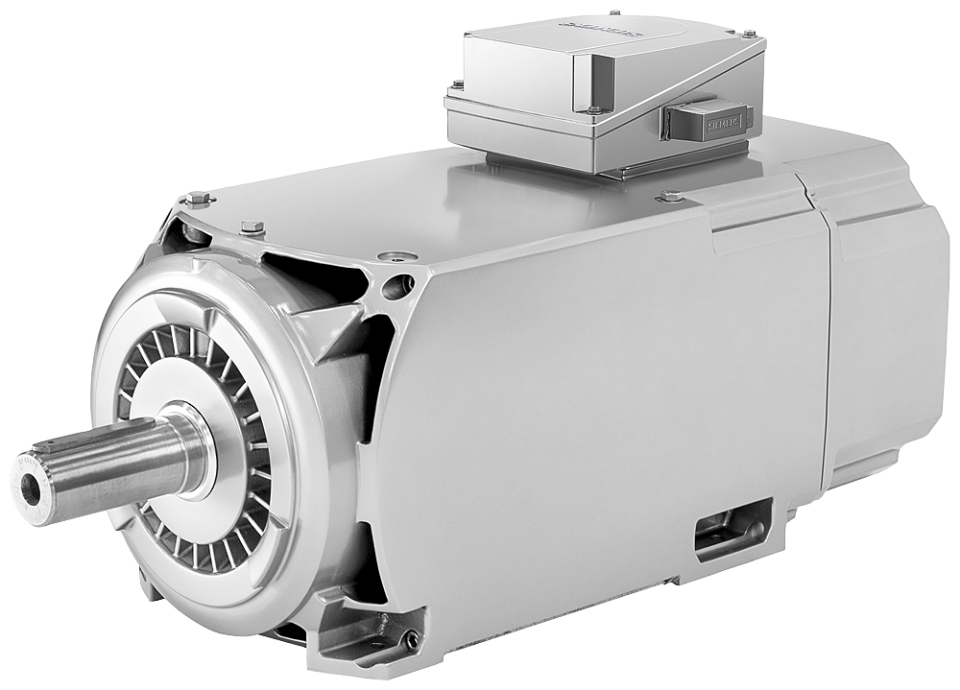

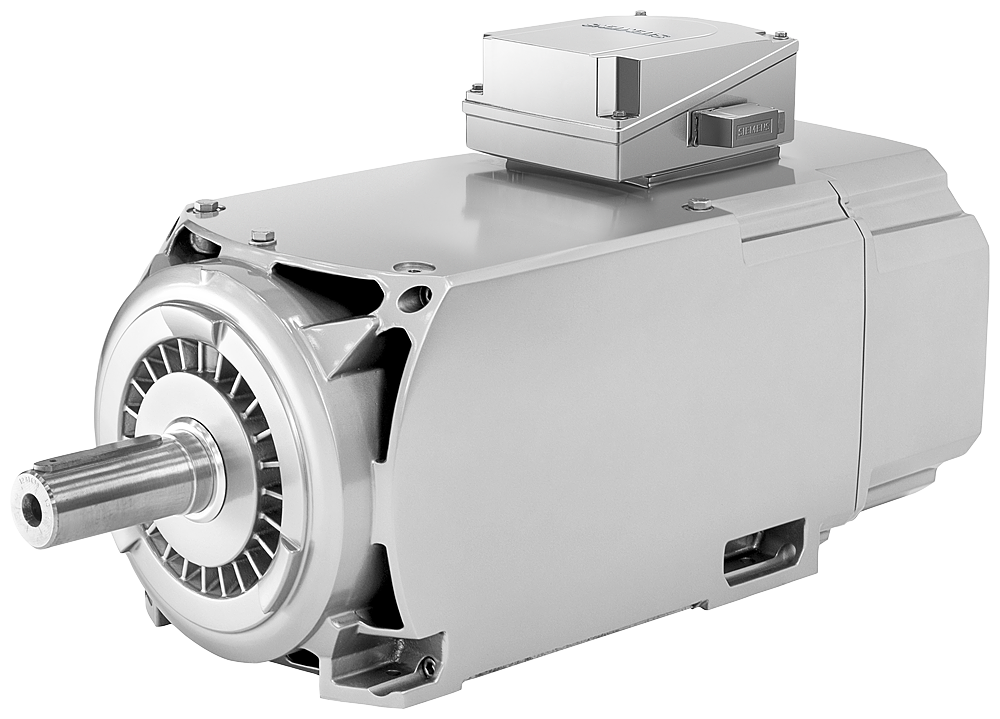

1PH8286-1AD40-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 309

SIMOTICS M Compact asynchronous motor 1000 rpm, 309 kW, 2951 Nm, 630 A, 330 V 1150 rpm, 355 kW, 2944 Nm, 630 A, 380 V 1350 rpm, 410 kW, 2901 Nm, 620 A, 445 V Open-circuit ventilation Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY BELOW SIGNAL CONNECTION D-END
