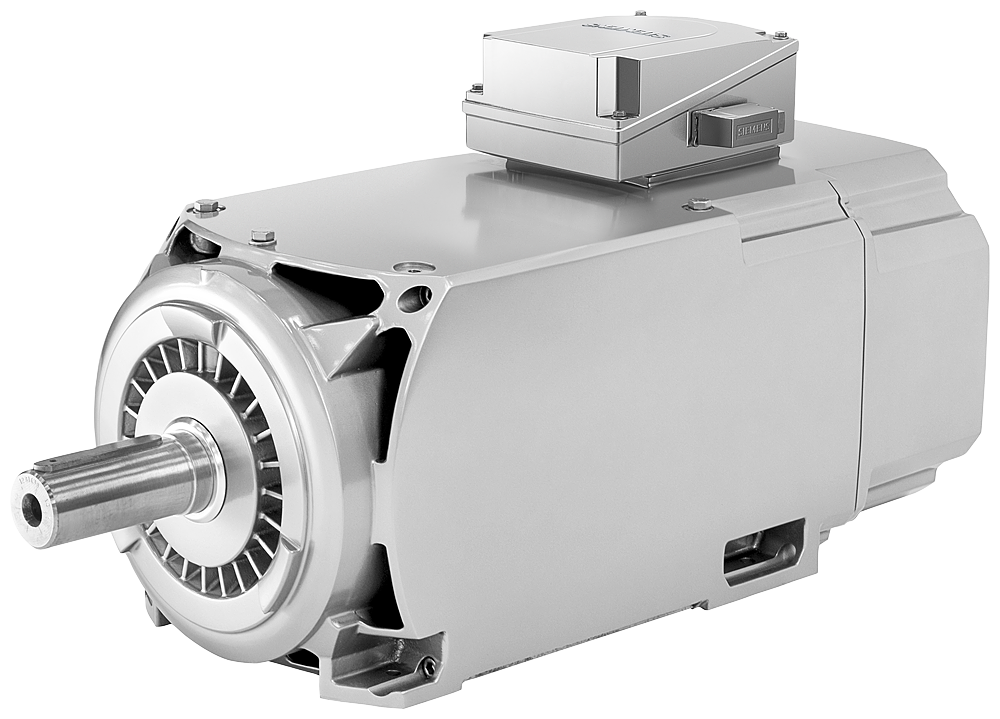

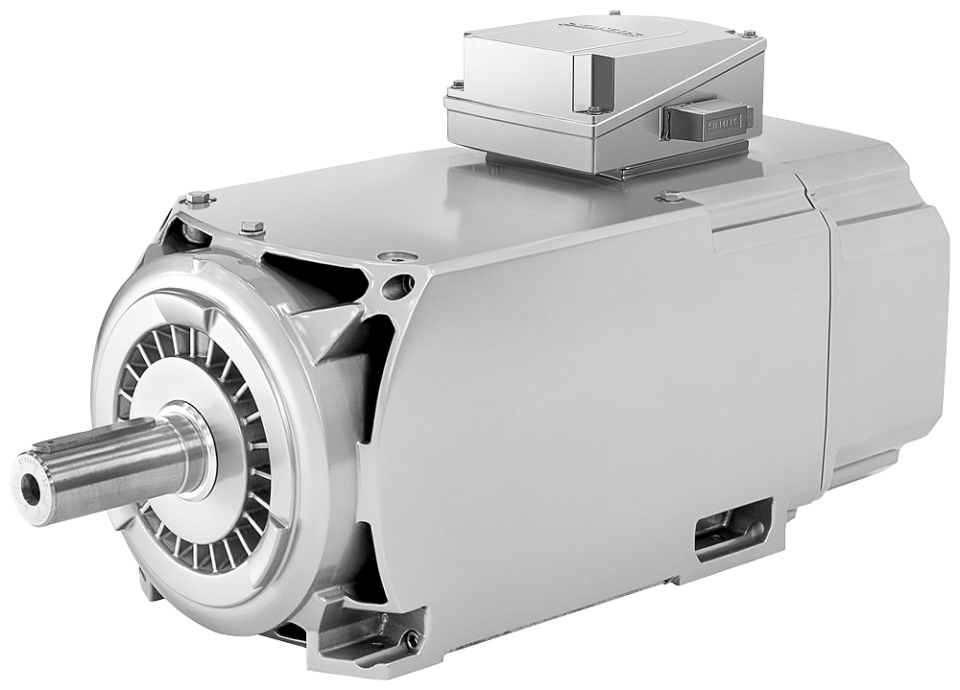

1PH8288-1AD10-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 226

SIMOTICS M Compact asynchronous motor 1000 rpm, 226 kW, 2158 Nm, 495 A, 335 1150 rpm, 260 kW, 2160 Nm, 495 A, 385 V 1350 rpm, 305 kW, 2158 Nm, 495 A, 450 V Forced ventilation Degree of protection IP55 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX NDE RIGHT CABLE ENTRY BELOW SIGNAL CONNECTION D-END
