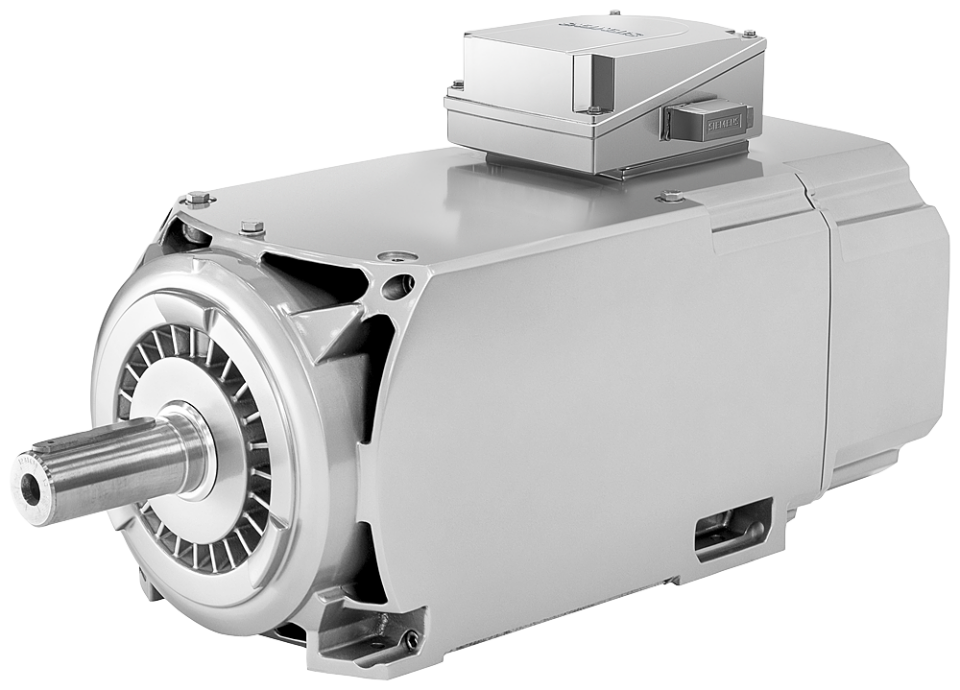

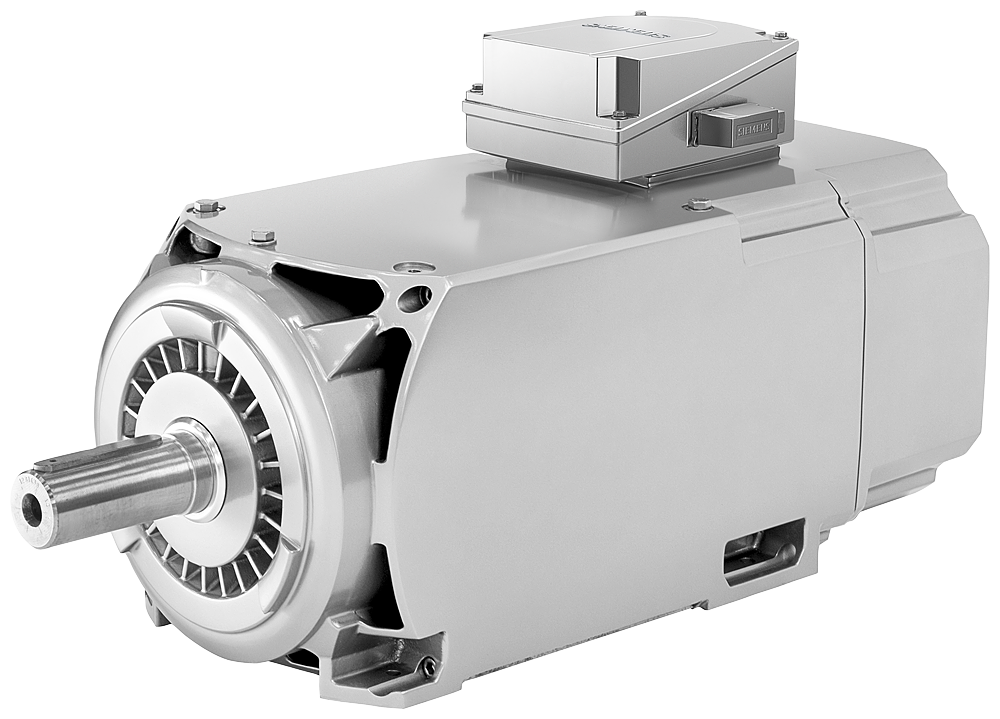

1PH8288-1AD40-2BU2 SIMOTICS M Compact asynchronous motor 1000 rpm, 379

SIMOTICS M Compact asynchronous motor 1000 rpm, 379 kW, 3619 Nm, 760 A, 335 V 1150 rpm, 435 kW, 3607 Nm, 760 A, 385 V 1350 rpm, 505 kW, 3573 Nm, 750 A, 450 V Open-circuit ventilation Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY BELOW SIGNAL CONNECTION D-END
