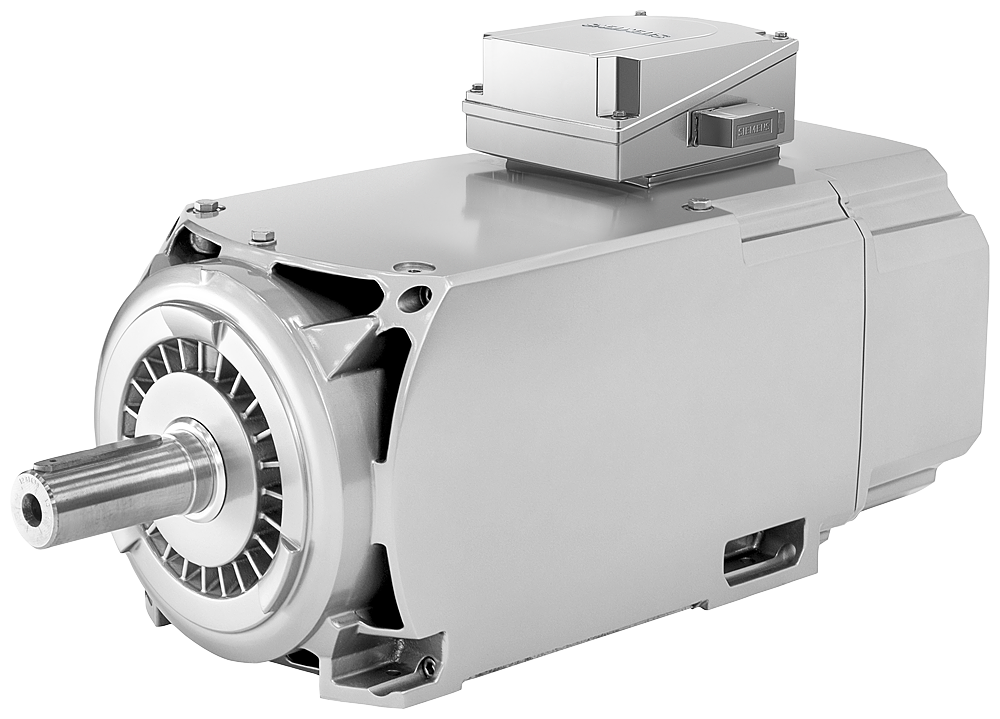

1PH8288-1AF40-2BU2 SIMOTICS M Compact asynchronous motor 1500 rpm, 480

SIMOTICS M Compact asynchronous motor 1500 rpm, 480 kW, 3056 Nm, 910 A, 345 V 1750 rpm, 560 kW, 3055 Nm, 910 A, 400 V 2000 rpm, 630 kW, 3009 Nm, 900 A, 455 V Open-circuit ventilation Degree of protection IP23 Without encoder With temperature sensor Pt1000 DESIGN IM B3 (IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY BELOW SIGNAL CONNECTION D-END
