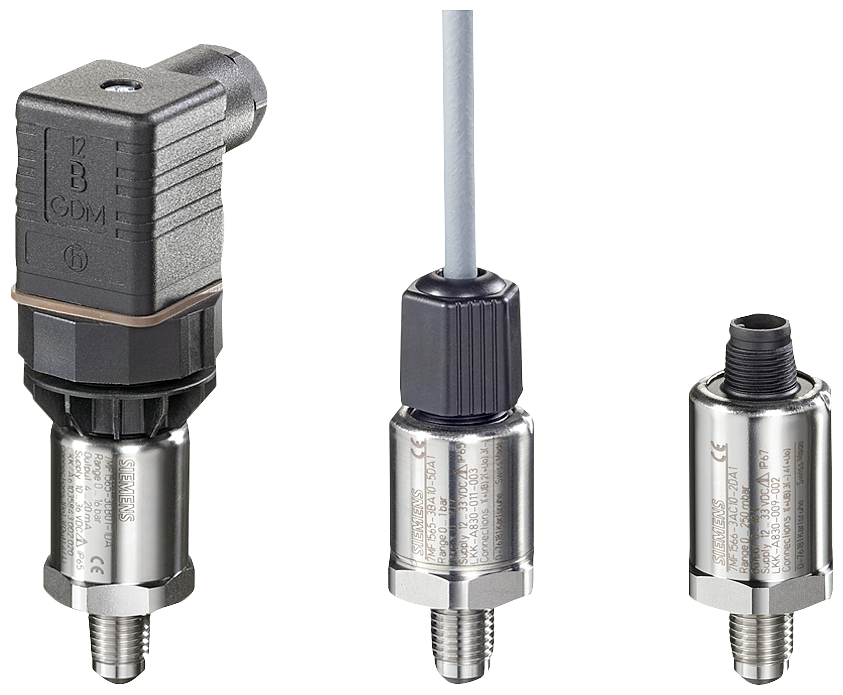

7MF1565-3CA00-1AA1 Pressure transmitter SITRANS P200 for pressure for

Pressure transmitter SITRANS P200 for pressure for low pressure applications. Characteristic curve deviation typ. 0.25 percent with free measuring range less than 0,5%. Material of wetted parts: stainless steel and sealing material. Material of non-wetted parts: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2inch male to EN 837-1 (1/2inch BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
