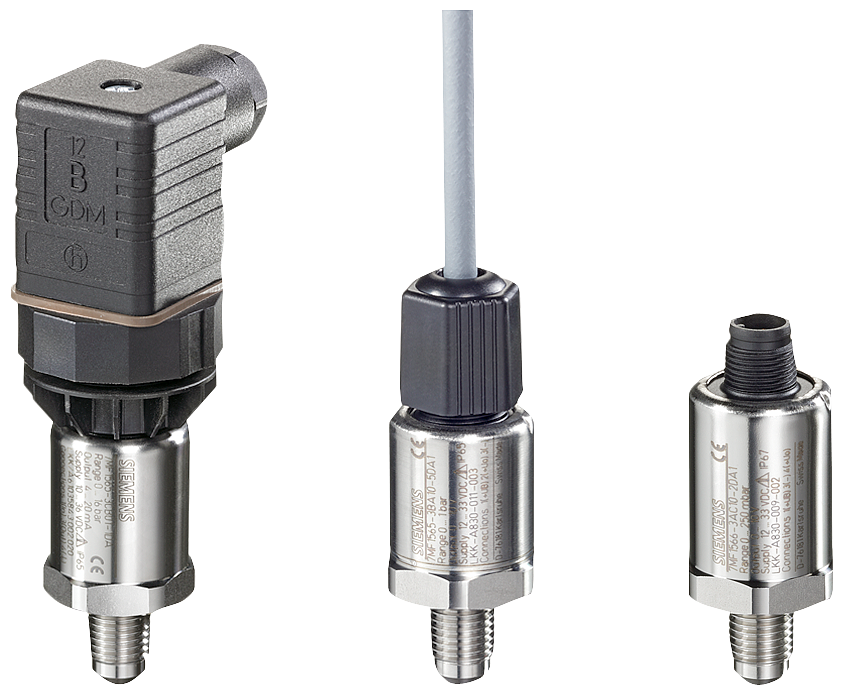

7MF1566-3AA00-1AA1 Pressure transmitter SITRANS P210 for pressure and

Pressure transmitter SITRANS P210 for pressure and absolute pressure for general applications. Characteristic curve deviation typ. 0.25% with free measuring range smaller 0,5%. Material of wetted parts: ceramic and stainless steel and sealing material. Material of non-wetted parts: stainless steel. Measuring range for gauge: 0 to 100 mbar, Overload- pressure 400 mbar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland M16 (with connector) Process connection: G1/2inch male to EN 837-1 (1/2inch BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
